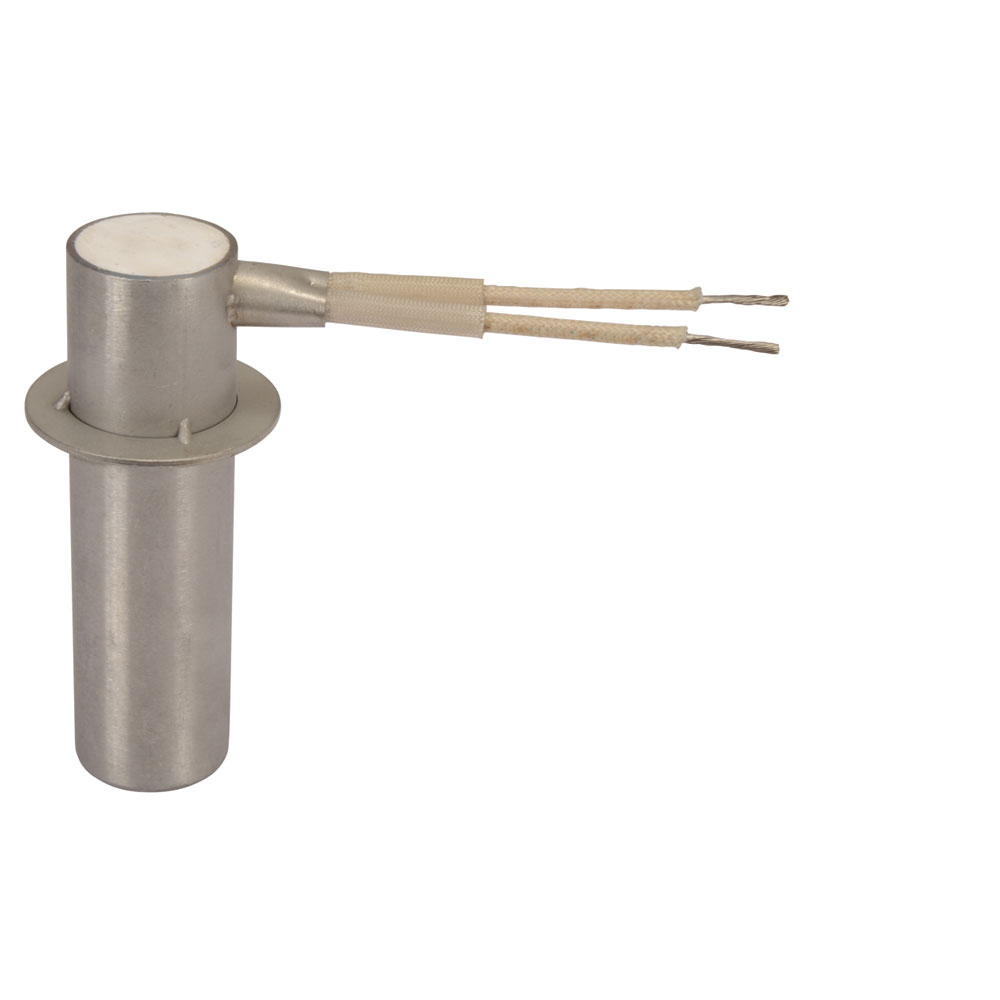

Underwater Pelletizer HD Cartridge Heaters

This cartridge heater design is primarily used to heat underwater pelletizer dies.

Max Temperature: 760°C (1400°F)
Max Voltage: 600VAC per termination
Max Wattage: 100-300 W/in² depending on size
Nominal Wattage: 23-42W/in²
Max Amperage: 3-9.7A (depending on size and termination)
Material: Incoloy (standard), Stainless Steel
Moisture seals: Welded end disc, Cement potting with silicone varnish (538°C)
Length: 3.5″ (2.5″ immersed)
Diameter: 1″
Flange: 1.5″ diameter (16 gauge SS)
Terminations: Mica insulated leads, SS overbraid, Armor cable,
Options: Ground wire
