Thermocouples

Thermocouples are less precise than an RTD or thermistor with an accuracy of ± 1 degree, but they offer broader temperature ranges and various styles making them a very common tool for temperature sensing.

Temperature Range: J (95-760°C), K (95-1260°C), E (95-900°C), T (0-350°C)
Signal Output: mV, mA (with transmitter)
Calibration Types: J, K, E, T, N, B, S, R
Junction: Grounded, Ungrounded

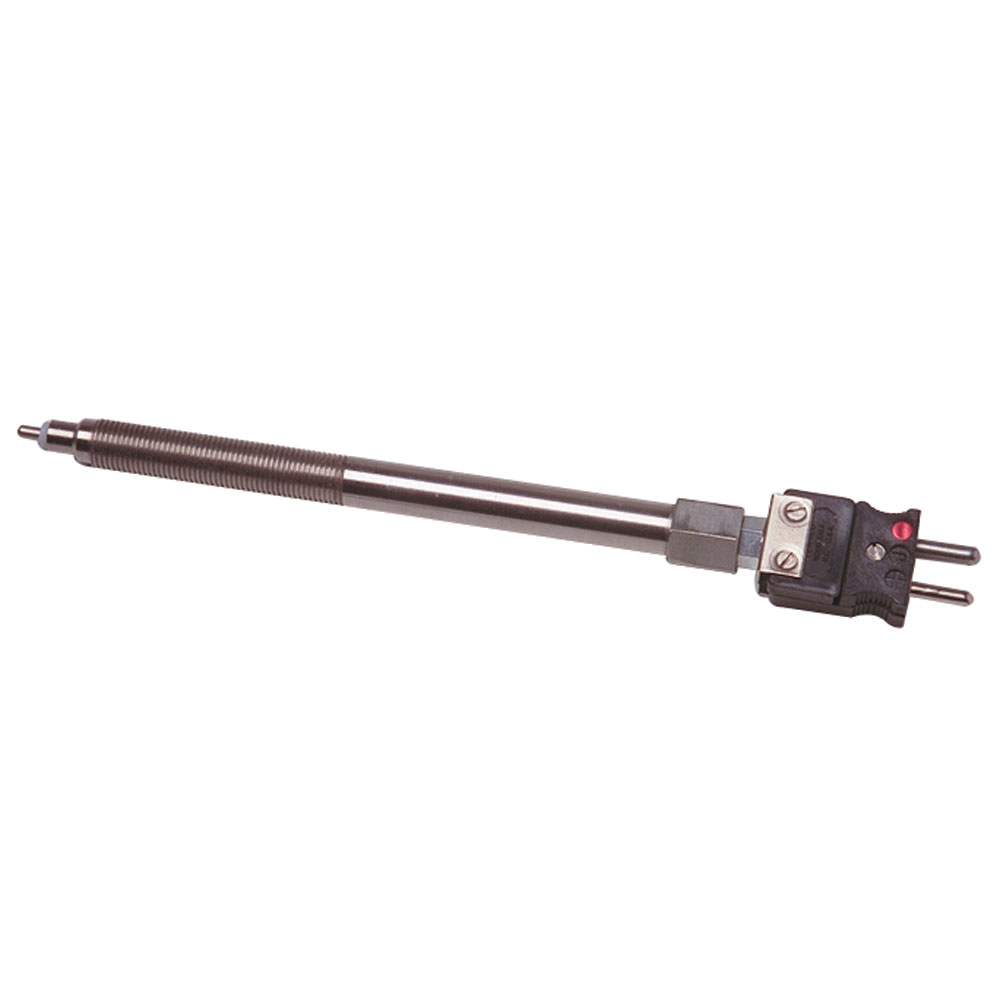

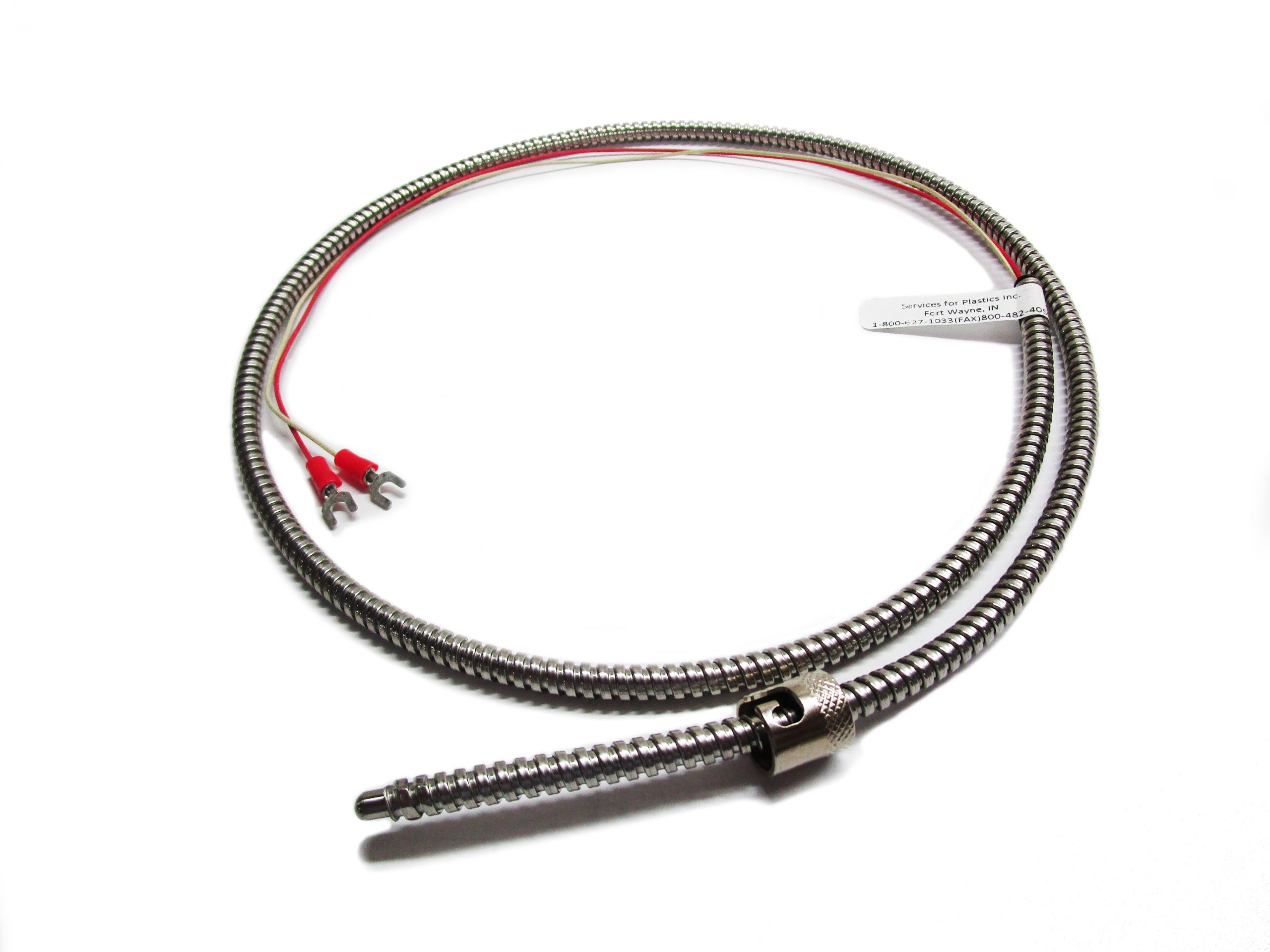

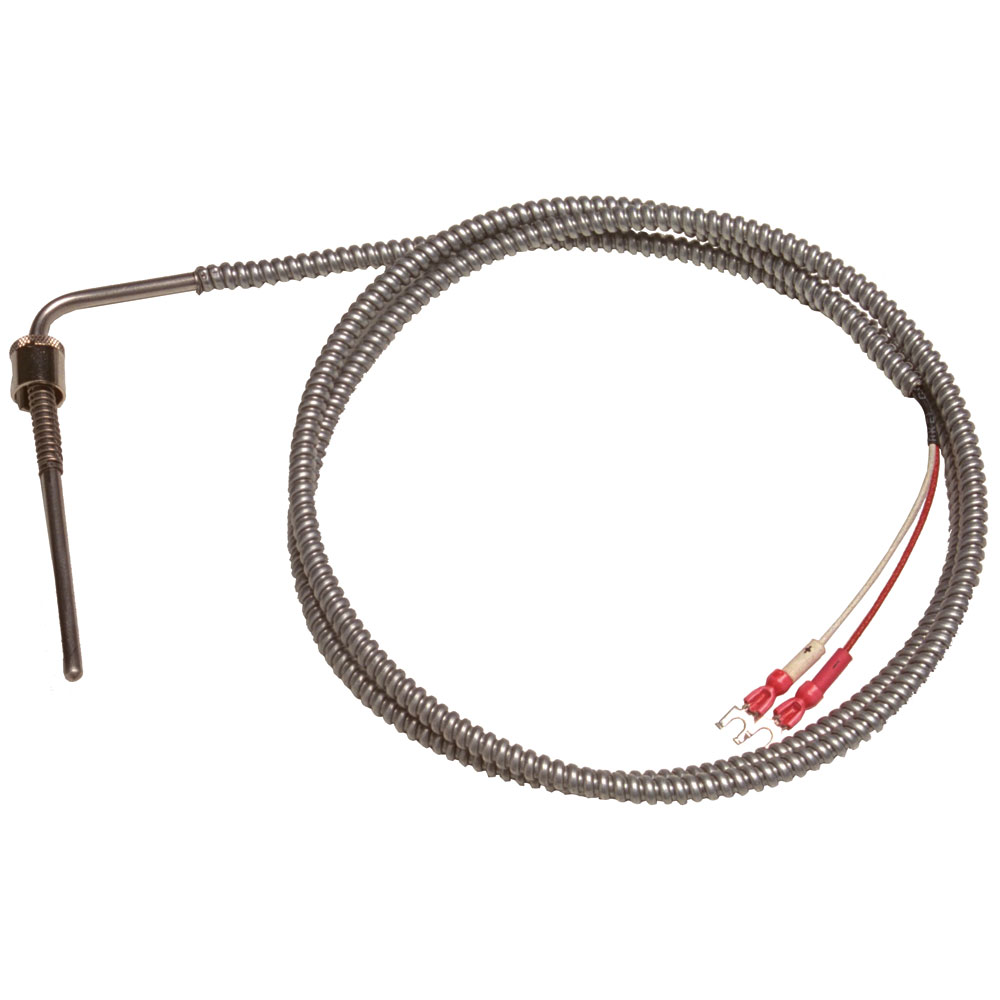

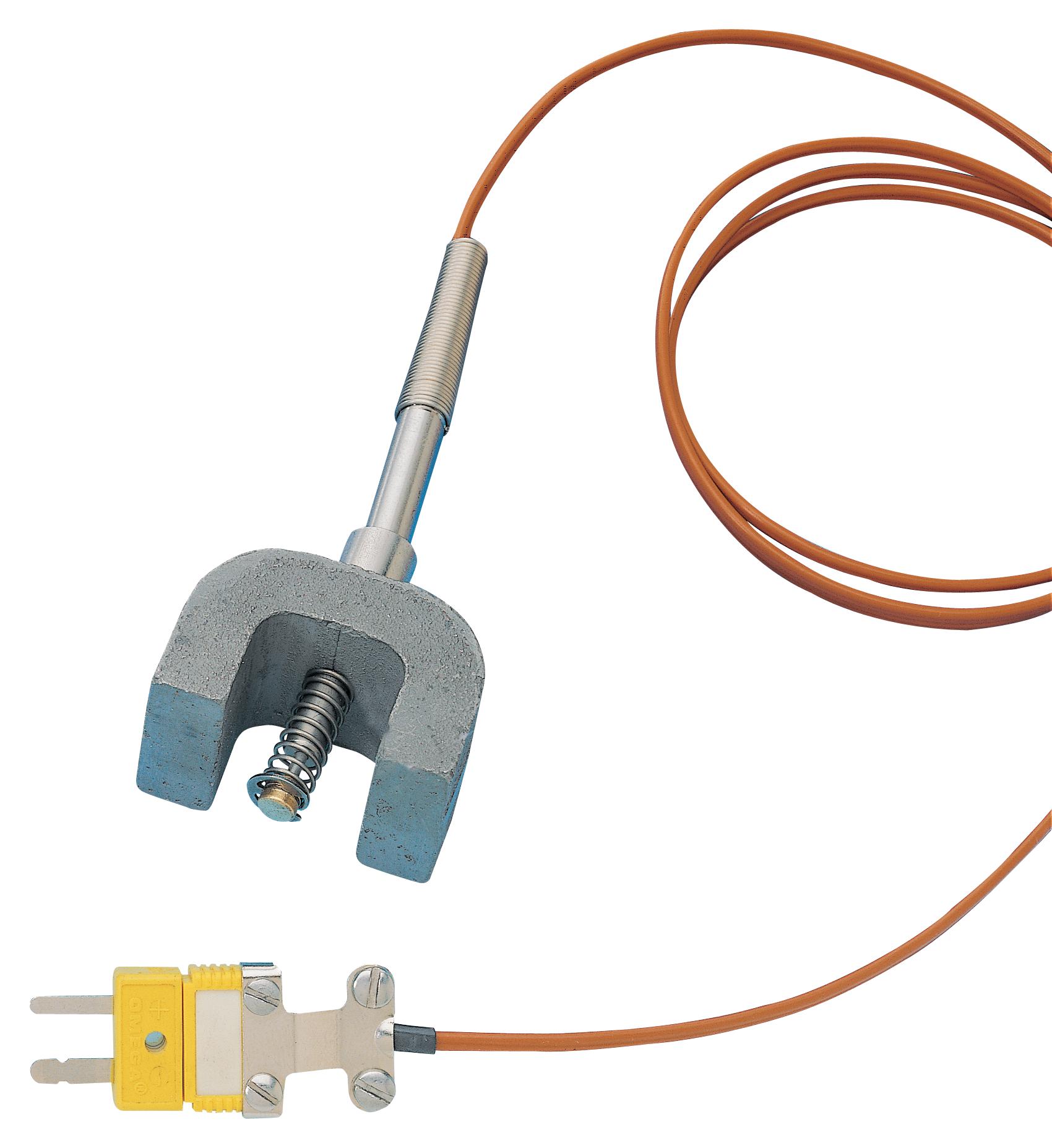

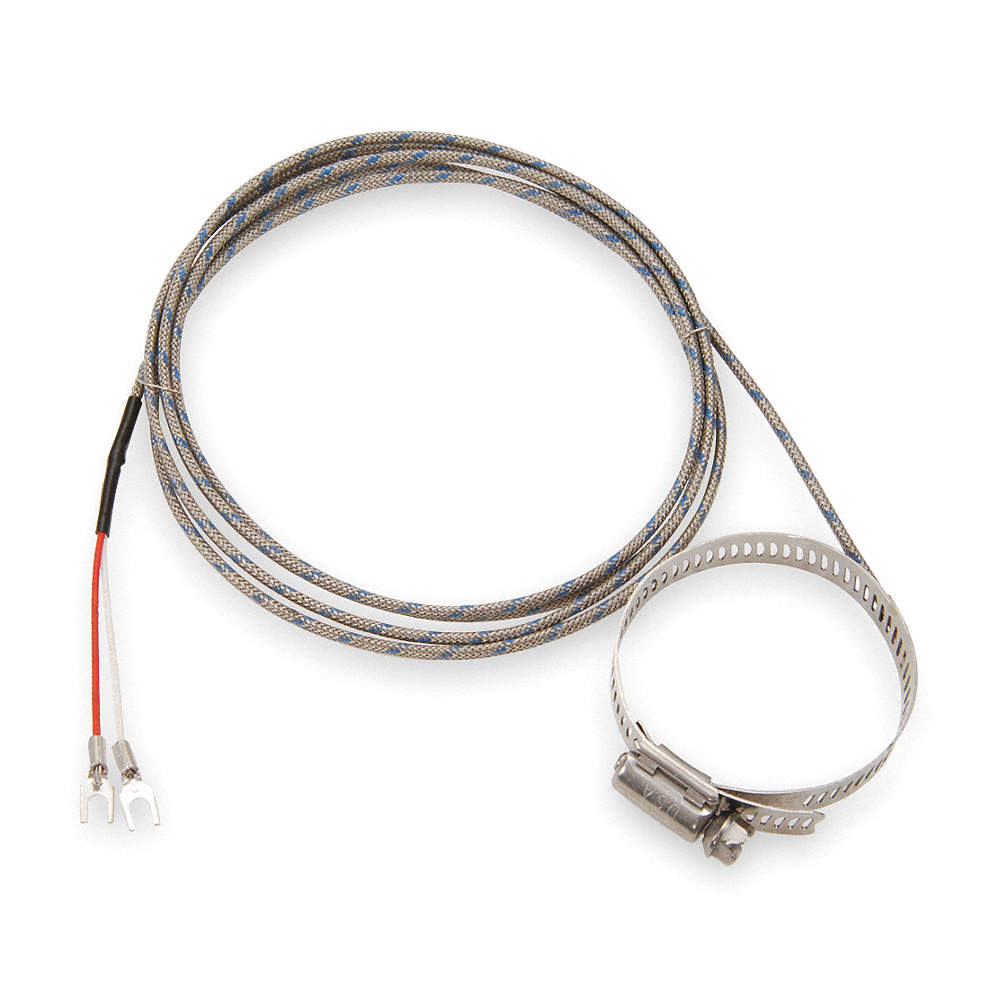

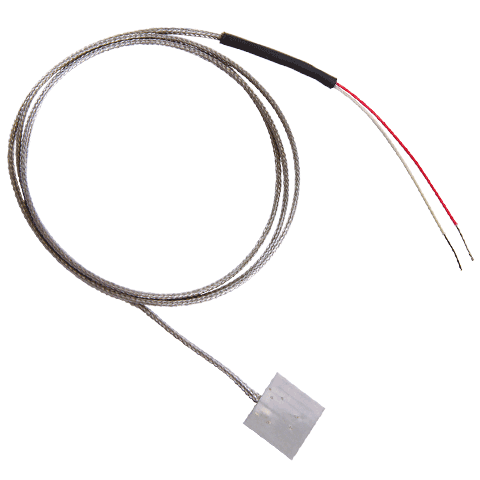

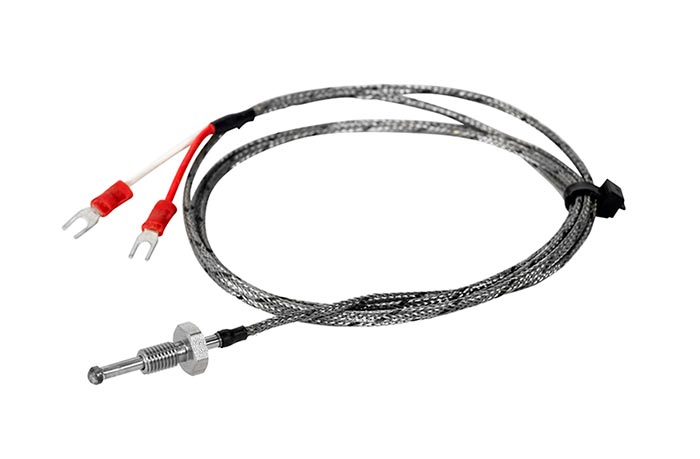

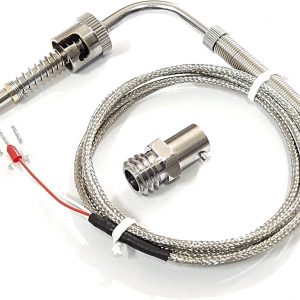

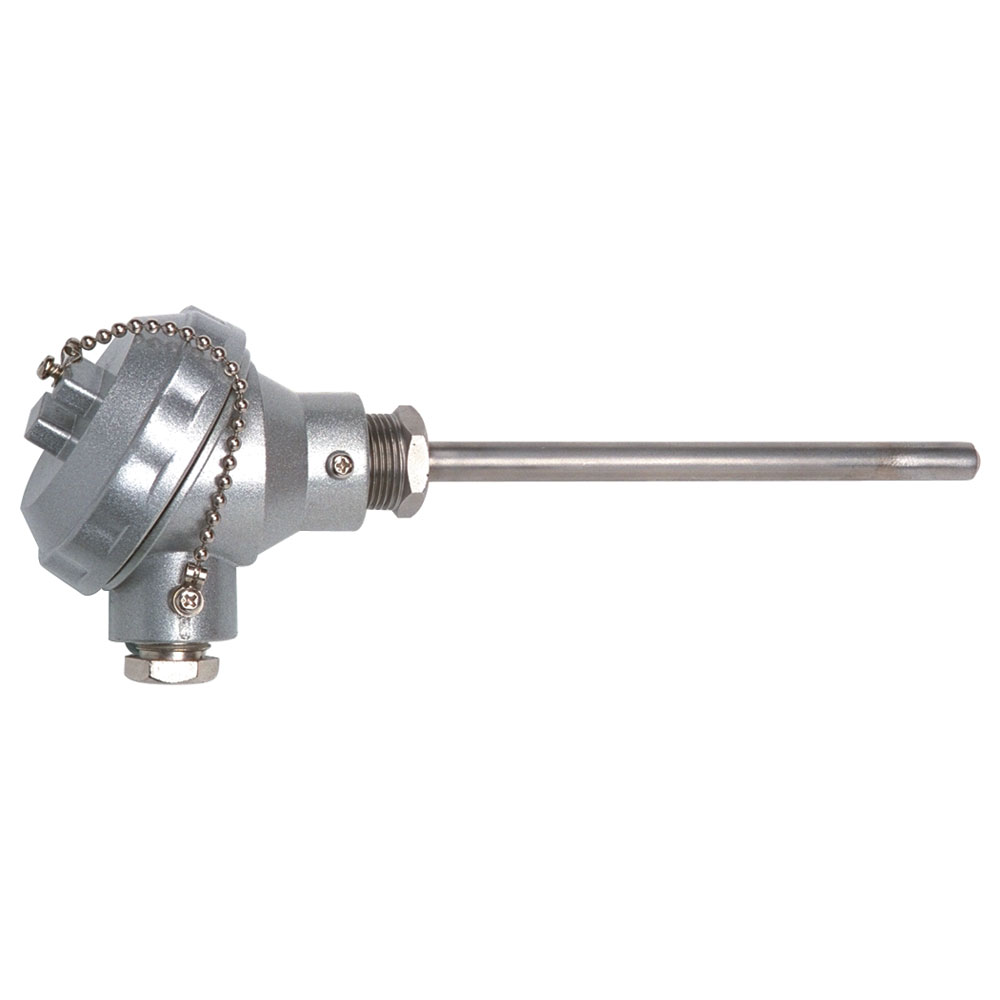

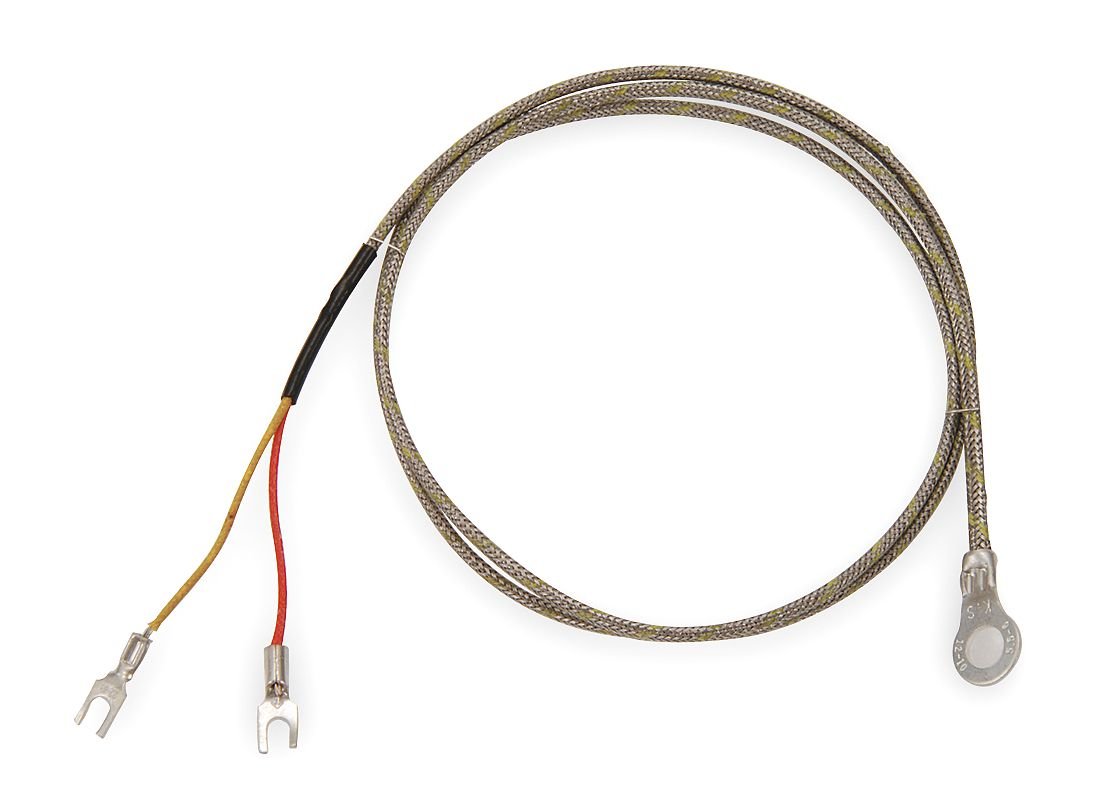

Styles: Bayonet, Tube & wire, Ring lug, Shim stock, Pipe clamp, Nozzle style, Melt bolt, Magnetic, Mineral insulated, Connection head, Base metal
Tube Tip: Round tip, Drill tip, Flat tip
Tube Diameter: 1/8″, 3/16″, 1/4″
Tube Angle: Straight, 45 degree bend, 90 degree bend
Material: 304SS 316SS

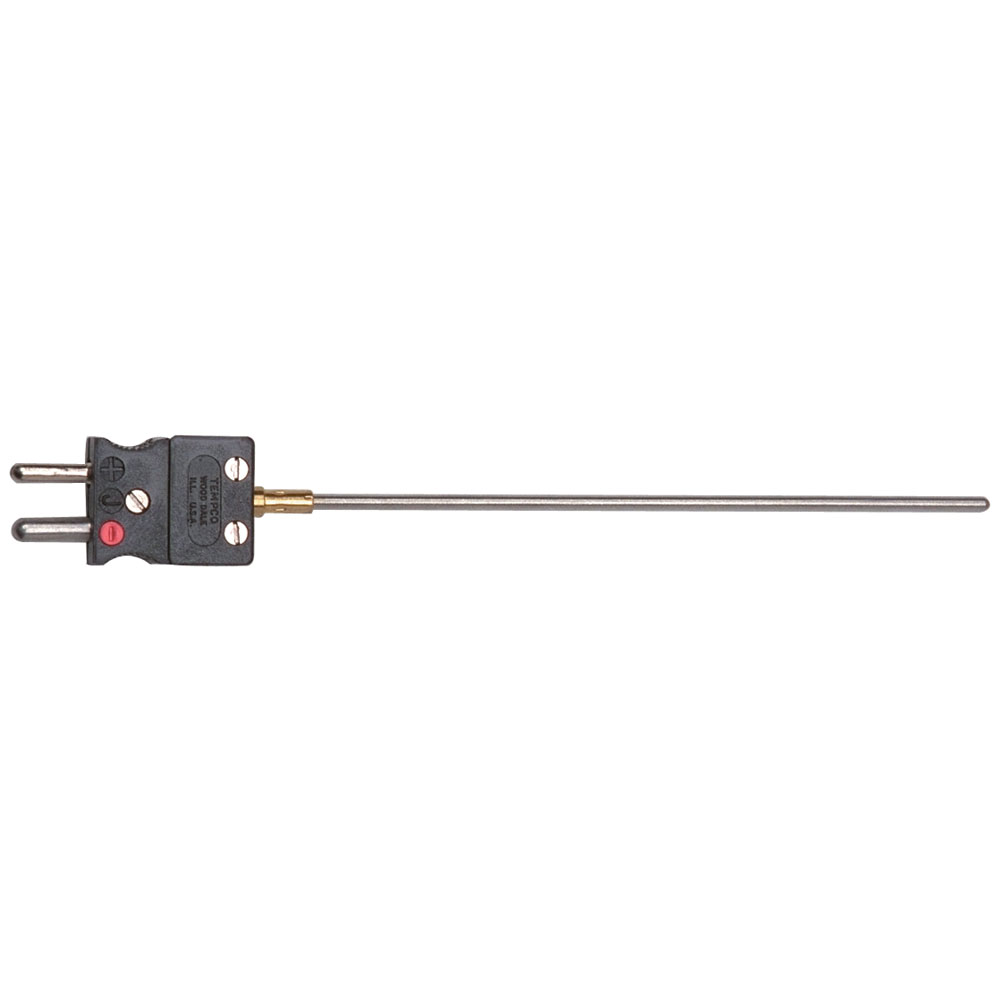

Terminations: Split ends, Plug, Jack, Mini plug, Mini jack, Terminal lugs
Leads: Fiberglass, Teflon
Sleeving: None, SS Overbraid, SS Armor cable
Options: Transmitter, Compression fitting, Dual, Multi-point
