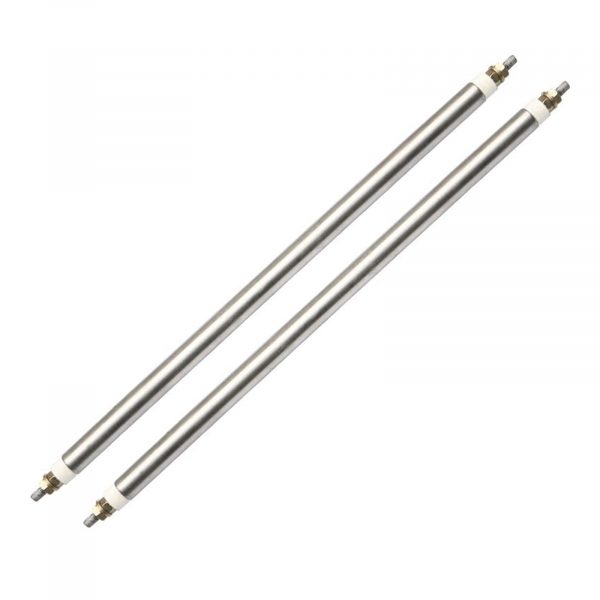

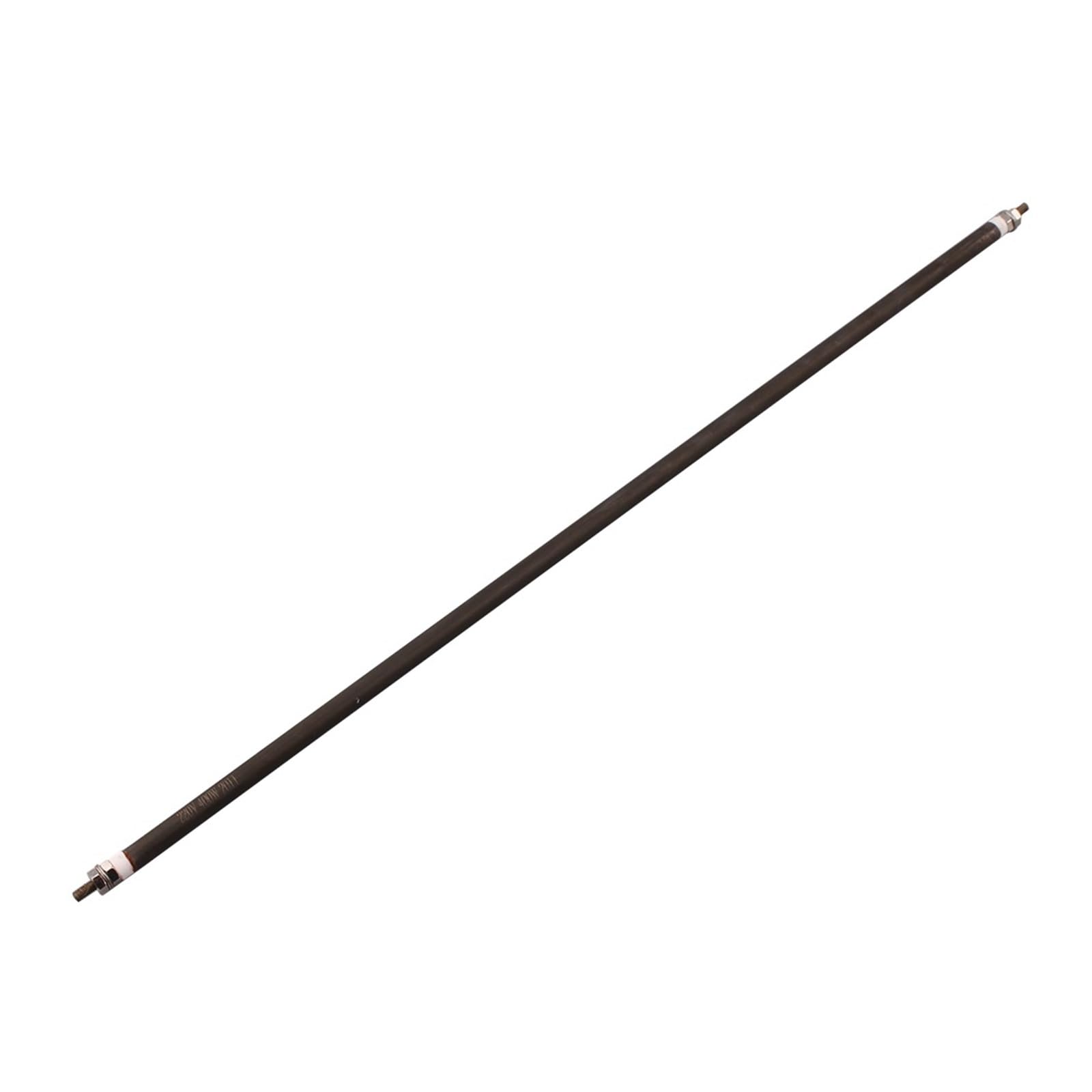

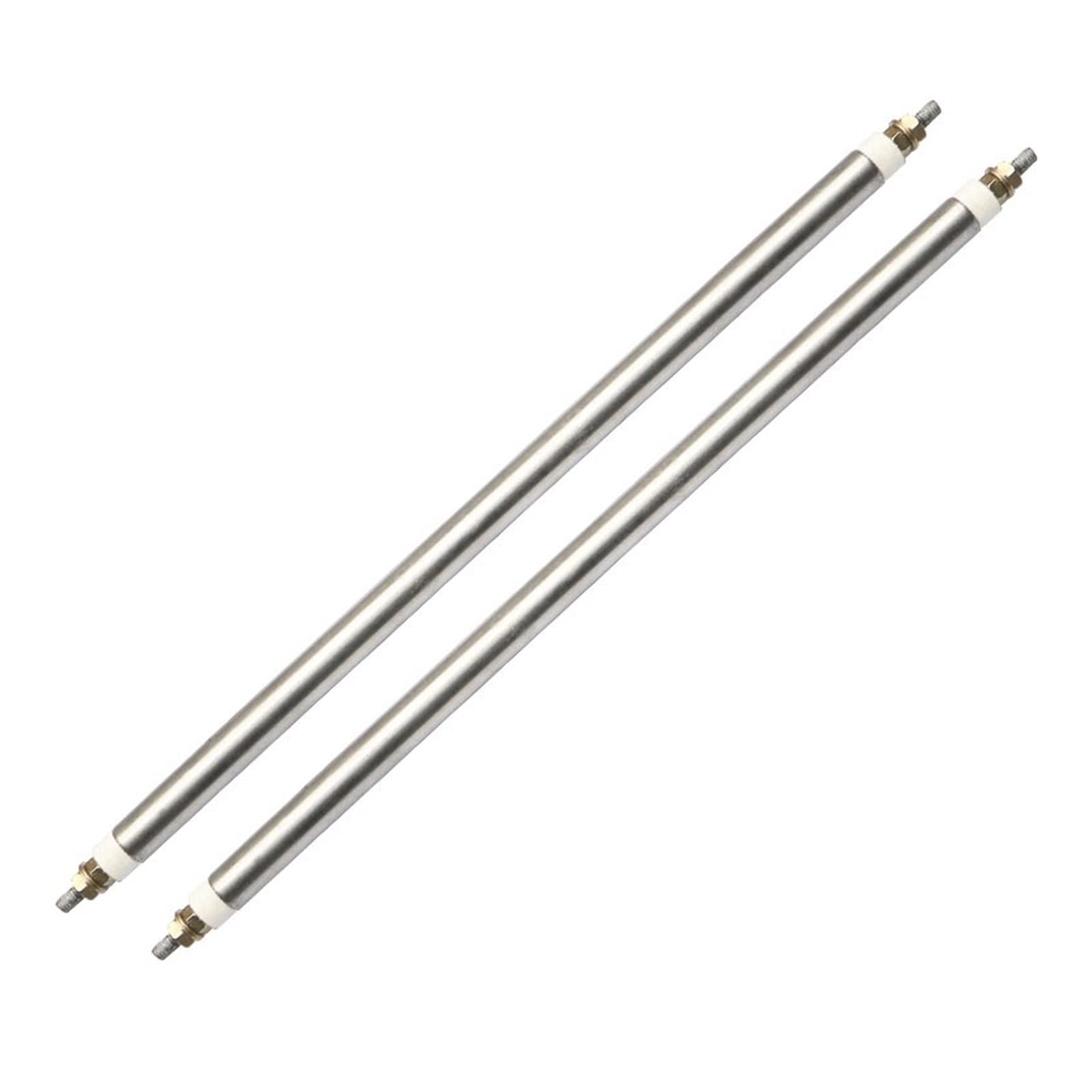

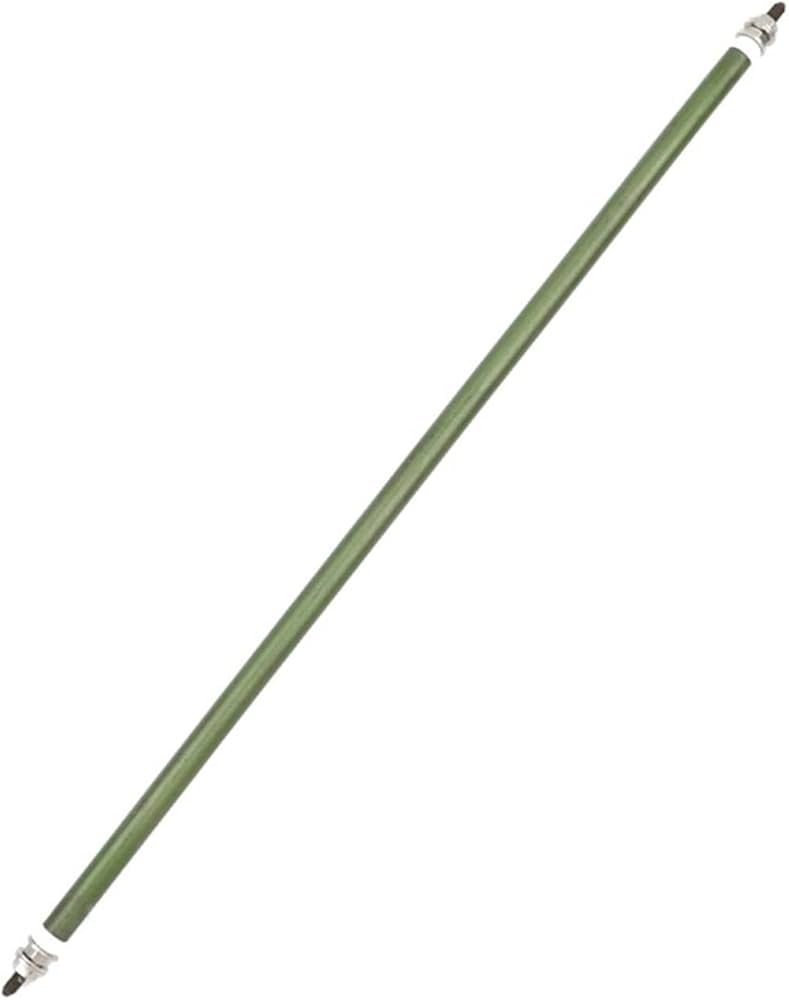

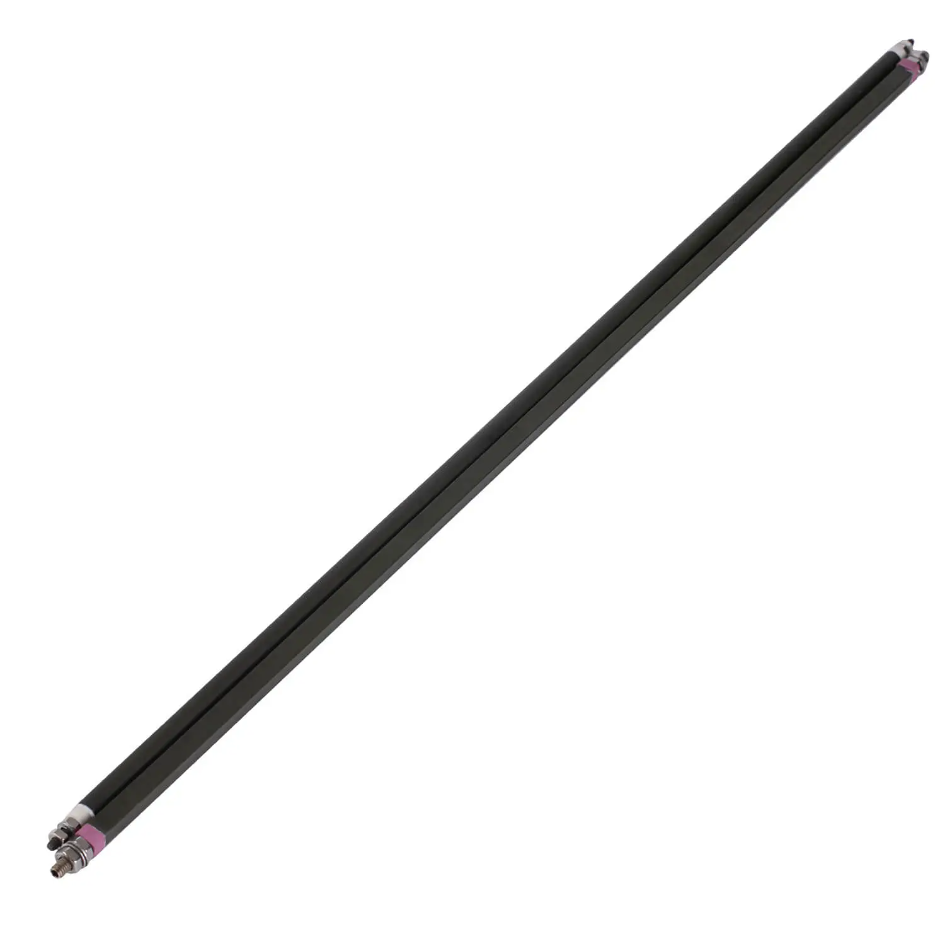

Straight Tubular Heaters

Max Voltage: 250Vac at 0.26” dia , 480Vac at 0.315” dia, 600Vac at 0.375” dia and up
Max Ohms: 17Ω/linear inch at 0.26” dia, 0.20Ω/linear inch
Max Amperage:10A 0.26” dia, 30A to 0.375” dia, 40A at 0.430” dia and up
Max Temperature: incoloy 871°C, stainless 649°C, low carbon steel 399°C, copper 177°C, Inconel 982°C
Options: bright annealing, electopolishing, passivation, 0.26 dia, 0.315 dia, 0.375 dia, 0.430 dia 0.475 dia, incoloy, steel, stainless steel, copper, inconel, finned
Moisture Seals: Silicone resin;conformal coating105°C, RTV silicone rubber; type R 150V , type R1 200°C, Epoxy resin; type V90°C, type V1130°C, type V3 200°C
Notes: water proof, used in immersion applications, Main element in cast-ins screwplugs and flanged heaters
Use: Radiant heating, hot runners, direct immersion, forced air, ovens/ dryers
