RTD’s

RTD’s are more accurate than thermocouples and are typically used when precise temperature measuring is crucial. RTD’s can have an accuracy of ±0.1°C but are limited in the effective range.

Temperature Range: Class A (-200°C to 650°C), Class B (–200°C to 850°C)
Signal Output: Ω, mA (with transmitter)
Types: 100Ω Platinum, 1000Ω Platinum
TCR: 0.00385 Ω/Ω/°C (industry Standard), 0.00392 Ω/Ω/°C
Wire: 2 wire, 3 wire, 4 wire

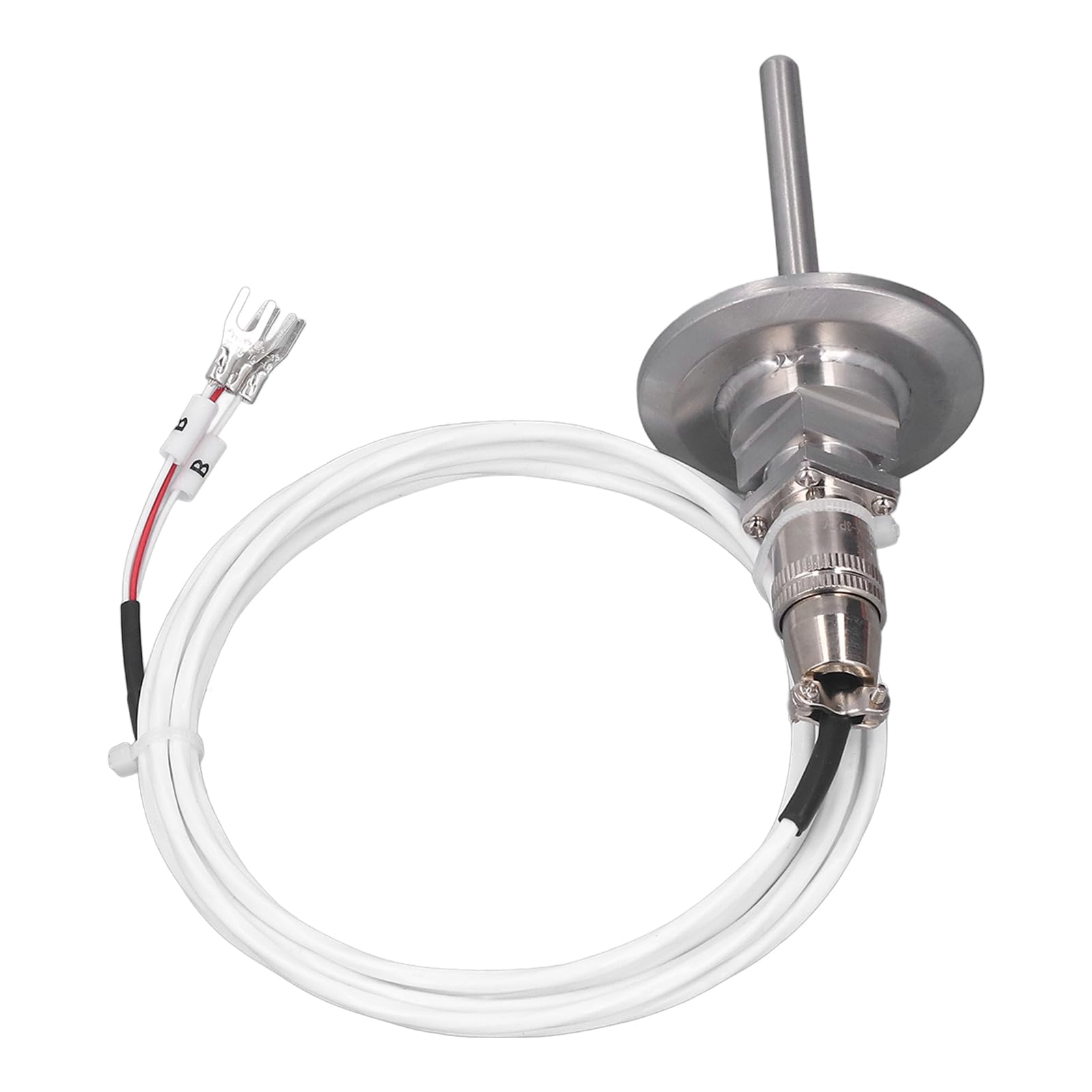

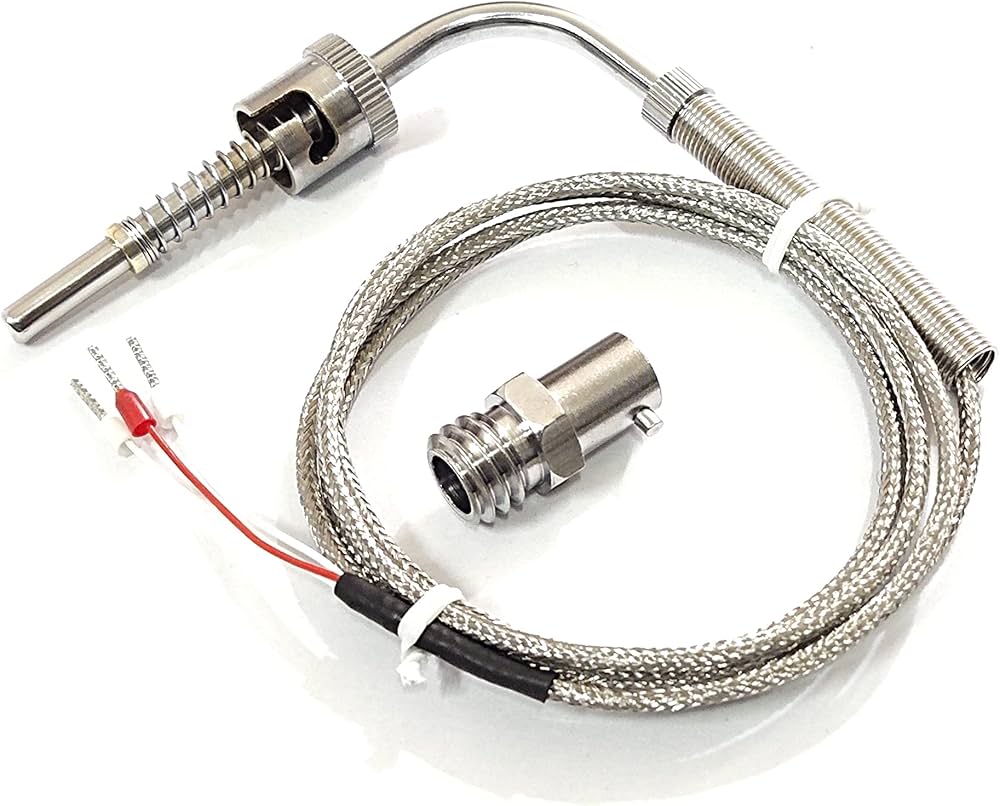

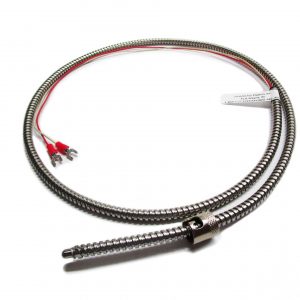

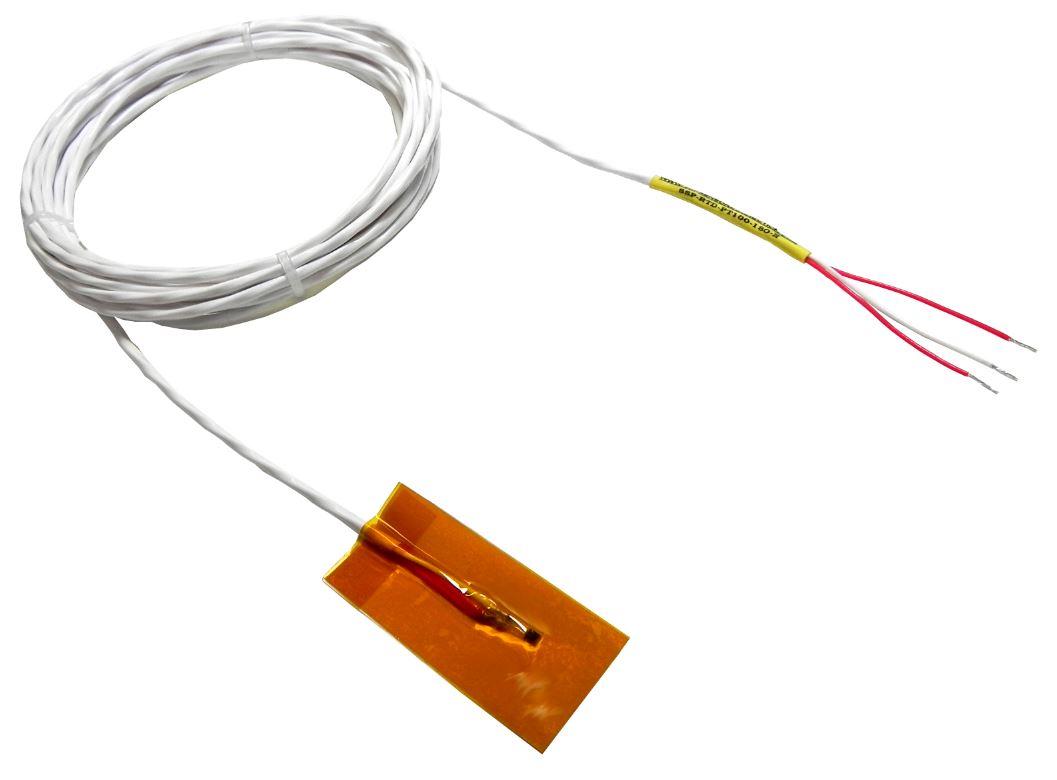

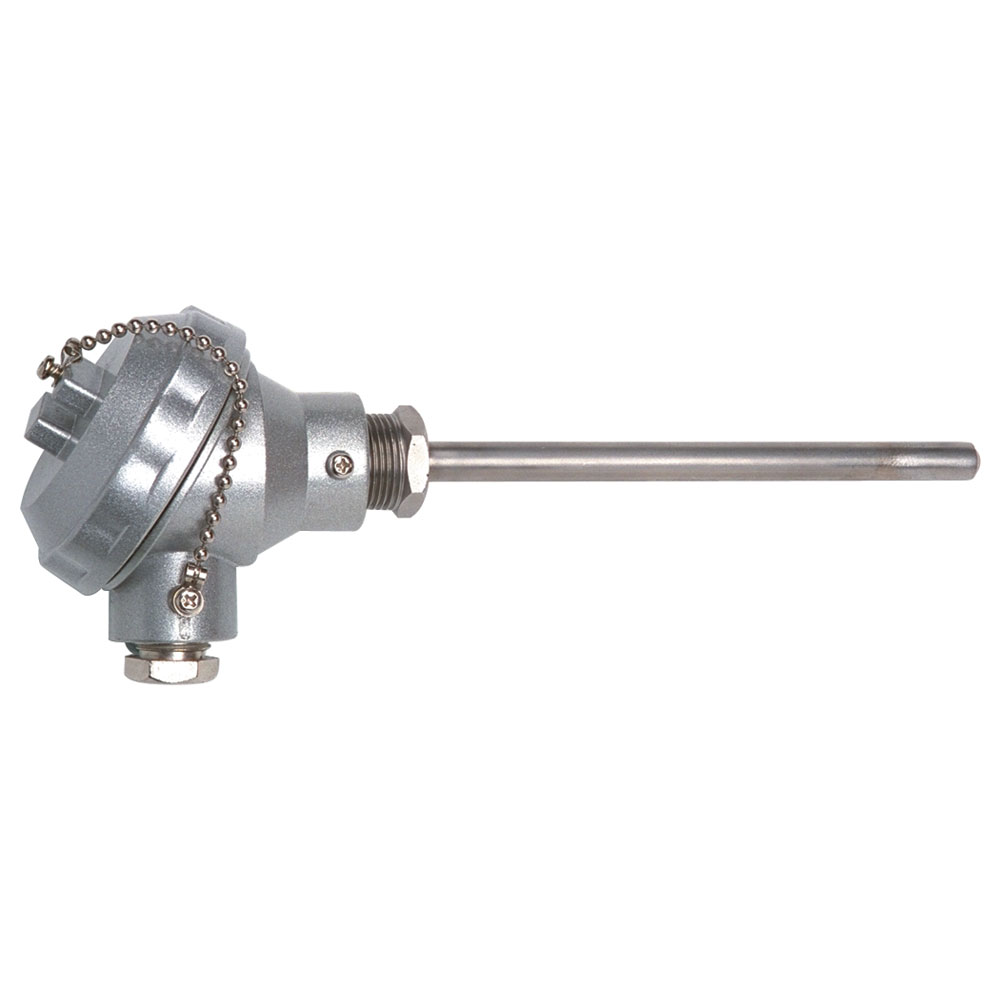

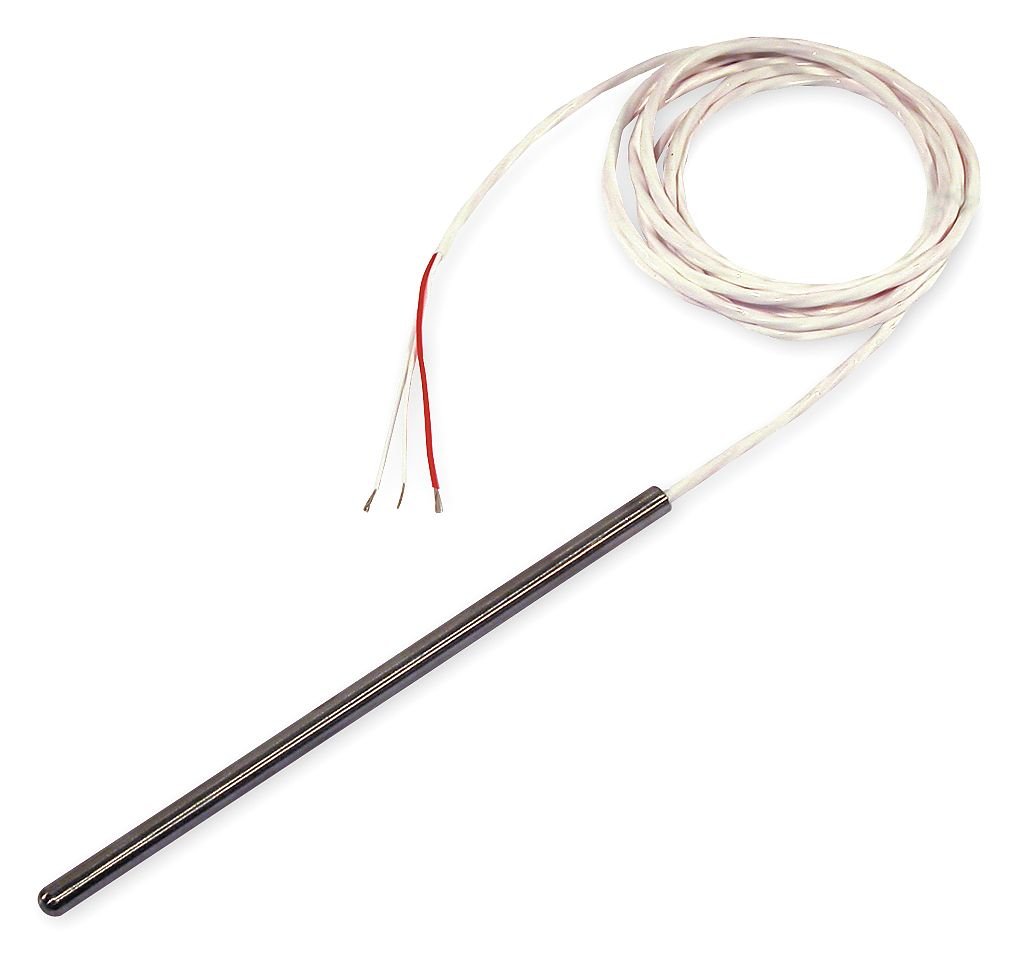

Styles: Tube & wire, Mineral insulated, Connection head, Bayonet, Melt bolt, Tri-clamp, Shim stock, Magnetic
Tube Tip: Round tip, Drill tip, Flat tip
Tube Diameter: 1/8″, 3/16″, 1/4″
Tube Angle: Straight, 45 degree bend, 90 degree bend
Material: 304SS 316SS
Terminations: Split ends, Plug, Jack, Mini plug, Mini jack, Terminal lugs
Leads: Fiberglass, Teflon
Sleeving: None, SS Overbraid, SS Armor cable
Options: Transmitter, Compression fitting, Dual, Multi-point
