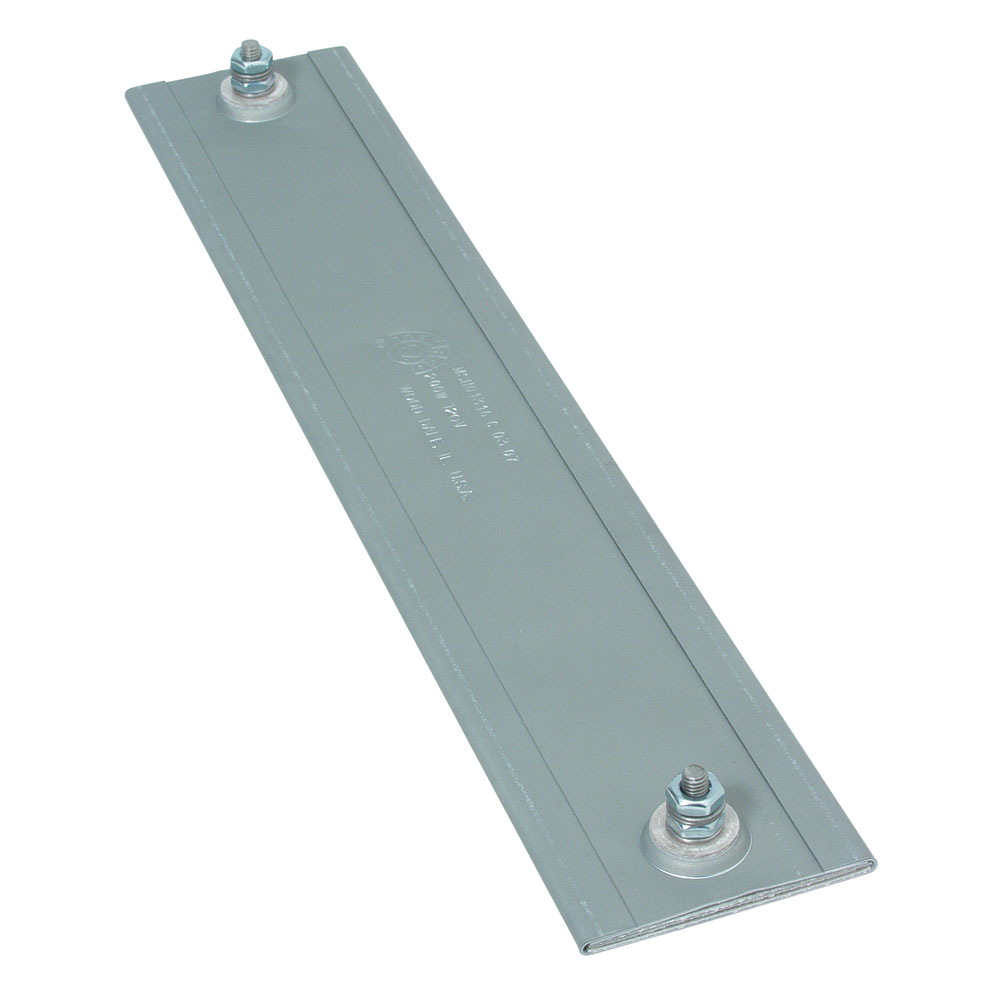

Mica Strip Heaters

Used on flat smooth surfaces. Typical application include hot plates, vulcanizing presses, packaging equipment, and blow molding equipment

Max Temperature: 650°C (1200°F)
Max Voltage: 480VAC
Max Wattage: 38W/in² with UL or CSA
Nominal Wattage: 5-45W/in² dependent on size
Max Amperage: 10A lead termination, 20A screw termination
Max Length: 72”
Minimum Width: ⅝”

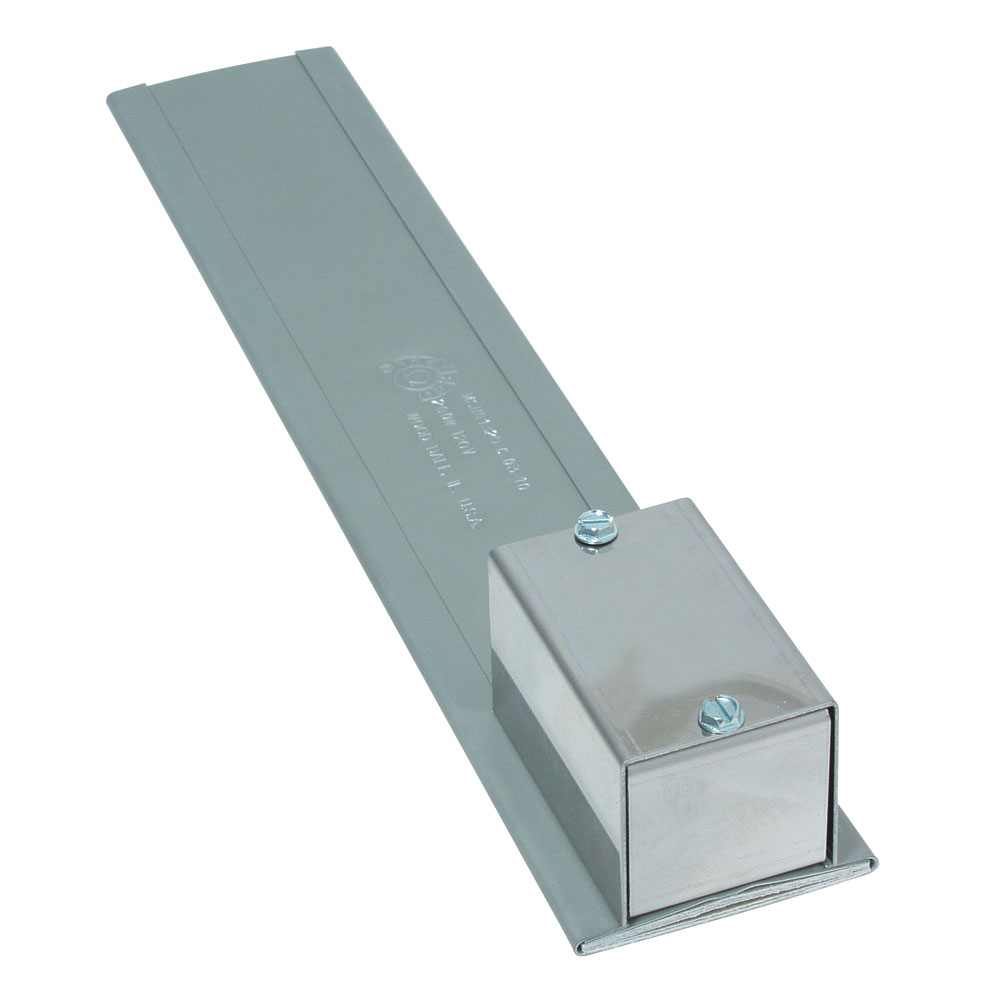

Terminations: Screw terminals, Wire braided leads, Amor cable leads, Plain fiberglass lead wire, General purpose terminal box, Erge European connector plug
Options: Pressure plate, Closed sides, Butted case, Cross-section formed, Holes and cutouts, ground wire,  distributed wattage, irregular shape, open element, disc shape, ring shape, Ceramic igloo covers, Three phase, Dual voltage
