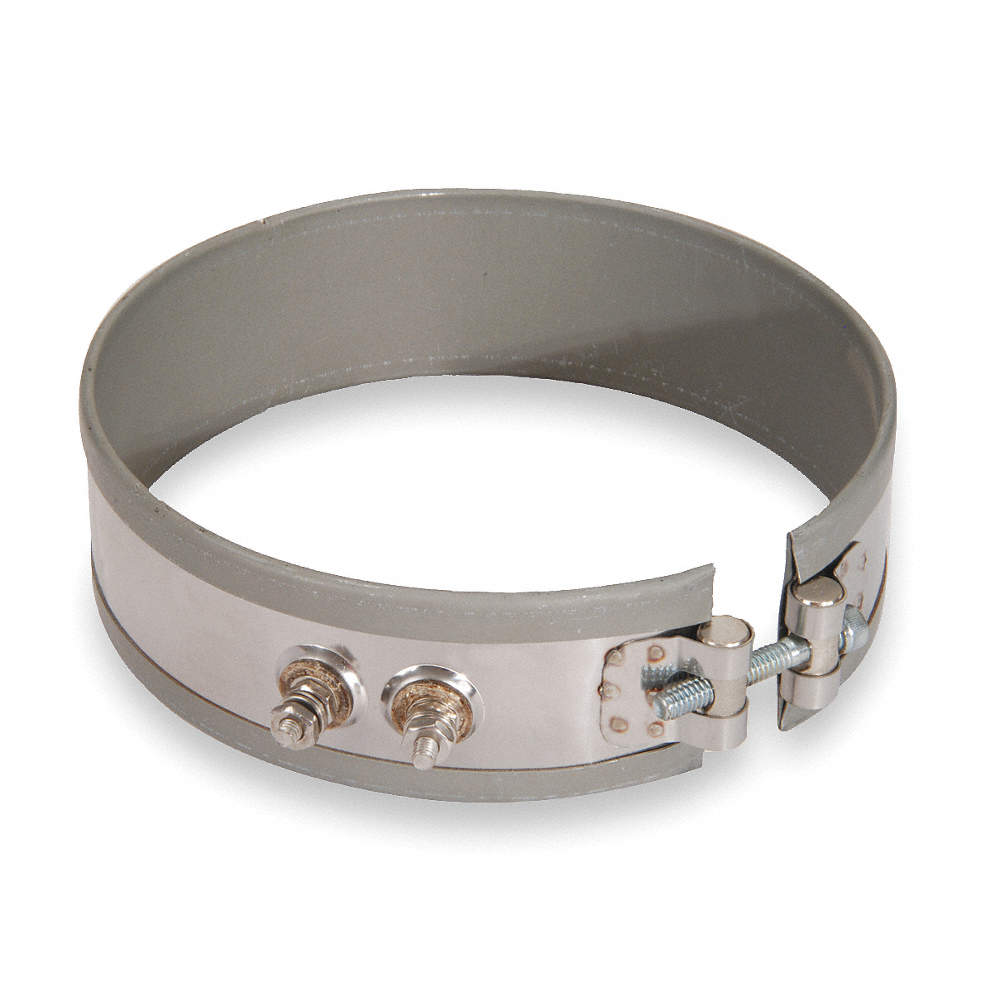

Mica Band Heaters

Used to heat smooth cylindrical uniform surfaces. Typical applications include drum heating, extruder barrels, autoclaves and holding tanks.

Max Temperature: 480°C (900°F)
Max Voltage: 480VAC per termination
Max Wattage: Dependent on size
Nominal Wattage: 20-45W/in²
Max Amperage: 10A with lead wire, 20A with screw terminals
Nominal Gap: ⅜”
Maximum Width: 15”
Maximum inner diameter: 25” or greater with multi-segmented band

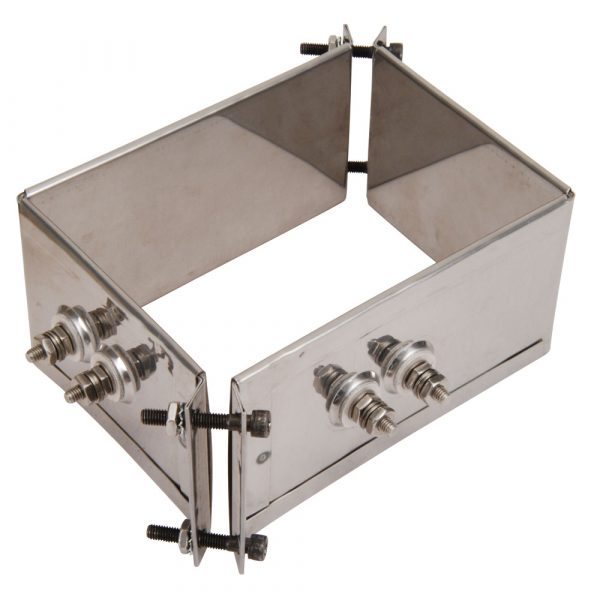

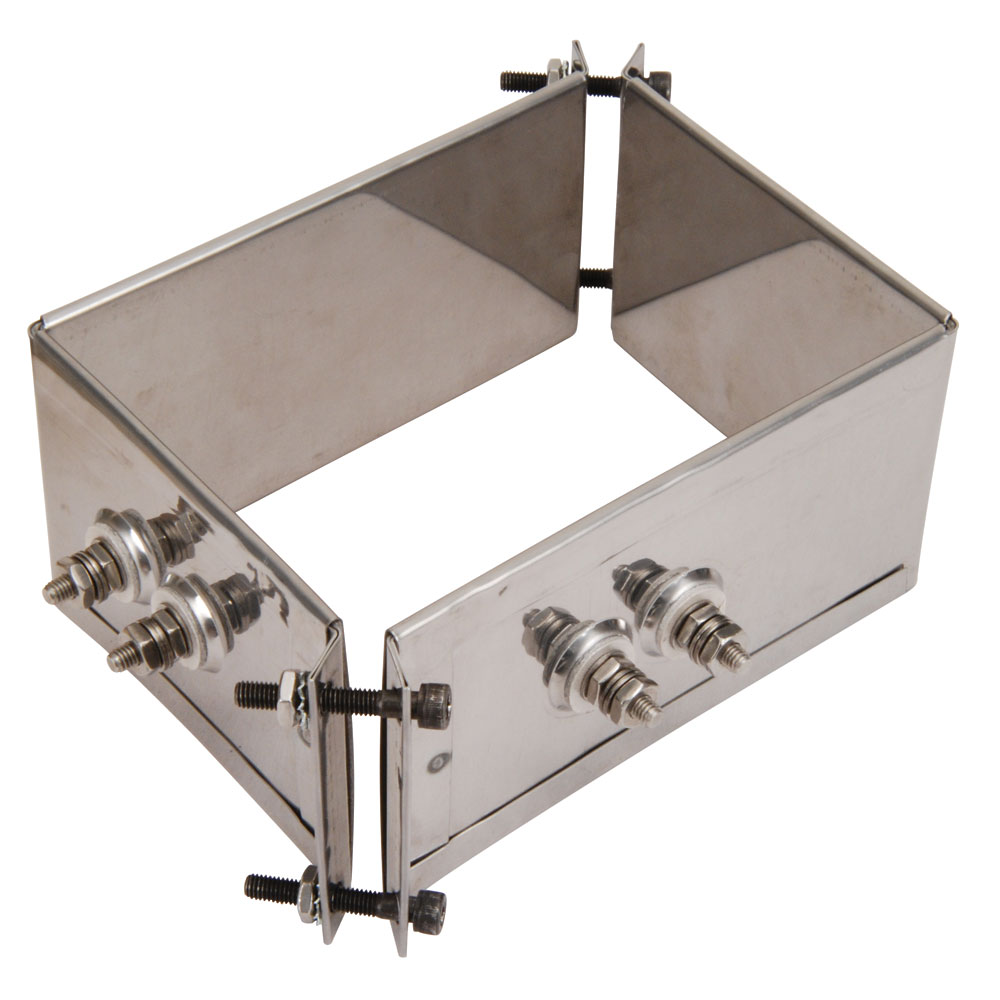

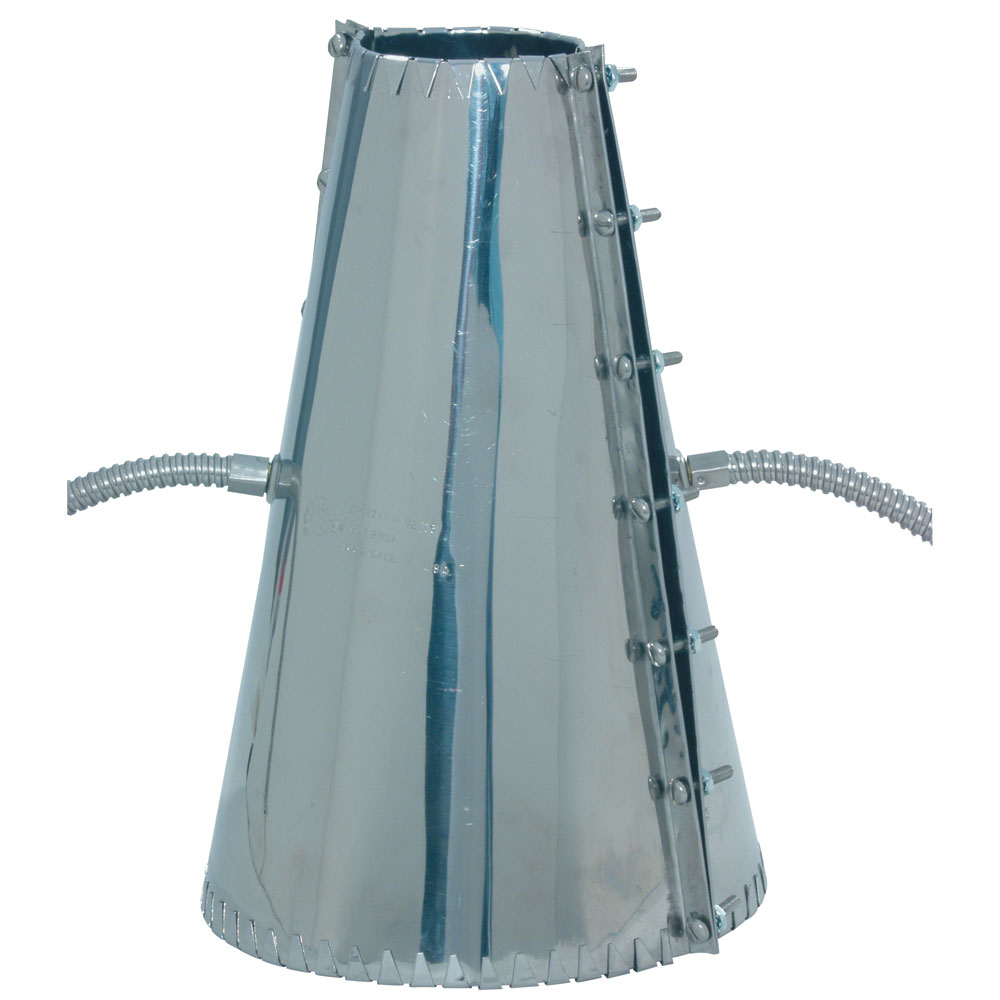

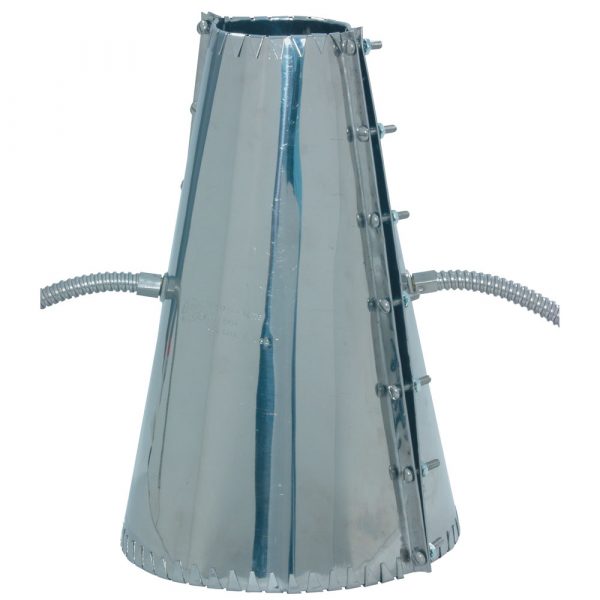

Construction: One-piece, Two-Piece, Three-Piece, Four-piece, Expandable, Hinged, Reverse, Partial Coverage, Rectangular, Hexagonal, Cone
Terminations: Screw terminals,  Wire braided lead wire, Armor cable lead wire, Plain fiberglass lead wire, General purpose terminal box, Erge European plug connector, Heavy duty twist lock plug,
Closures: Barrel nuts, Spring loaded barrel nuts, Separate strap, Latch and trunnion, Bent-up Flange
Options: Holes & cut-outs, Bayonet adapter, Right angle lead exit, Termination location, Ceramic igloo covers, Ground wire, Ground screw, Three phase, Dual voltage, Terminal lugs
