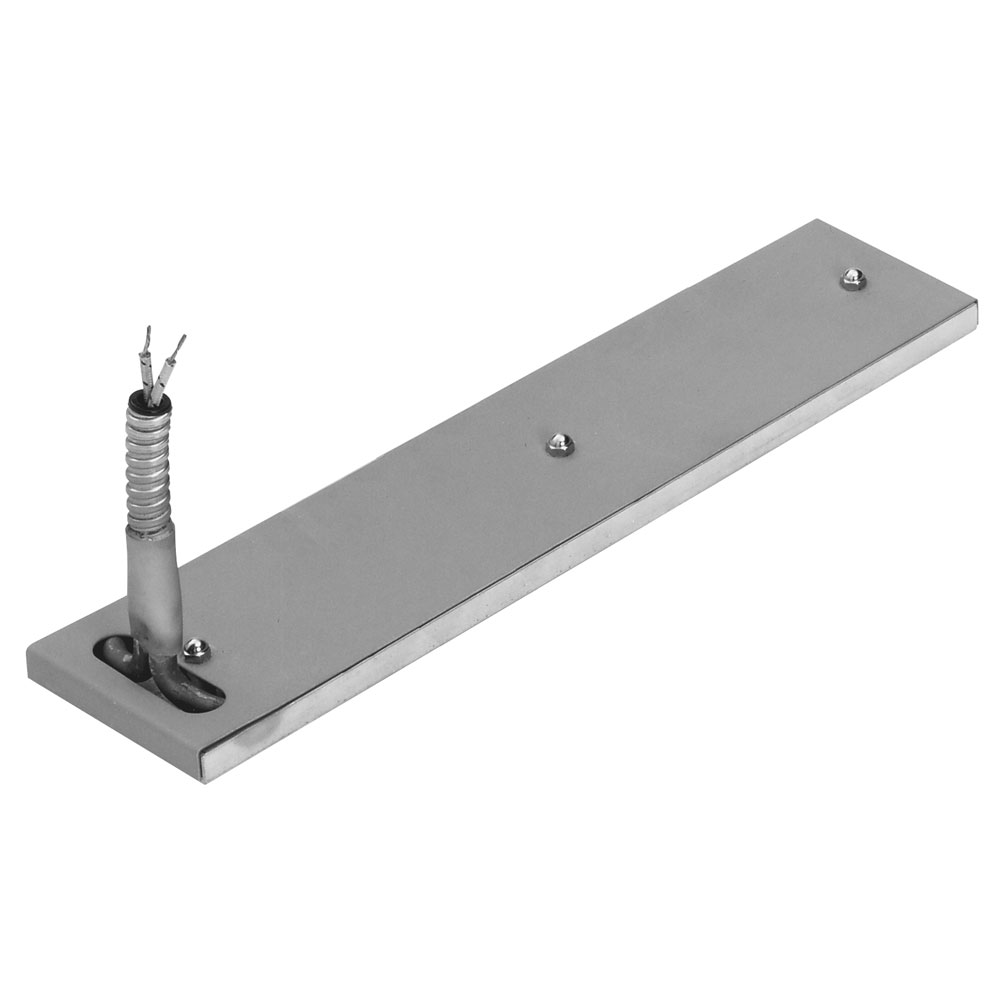

Maxi Strip Heaters

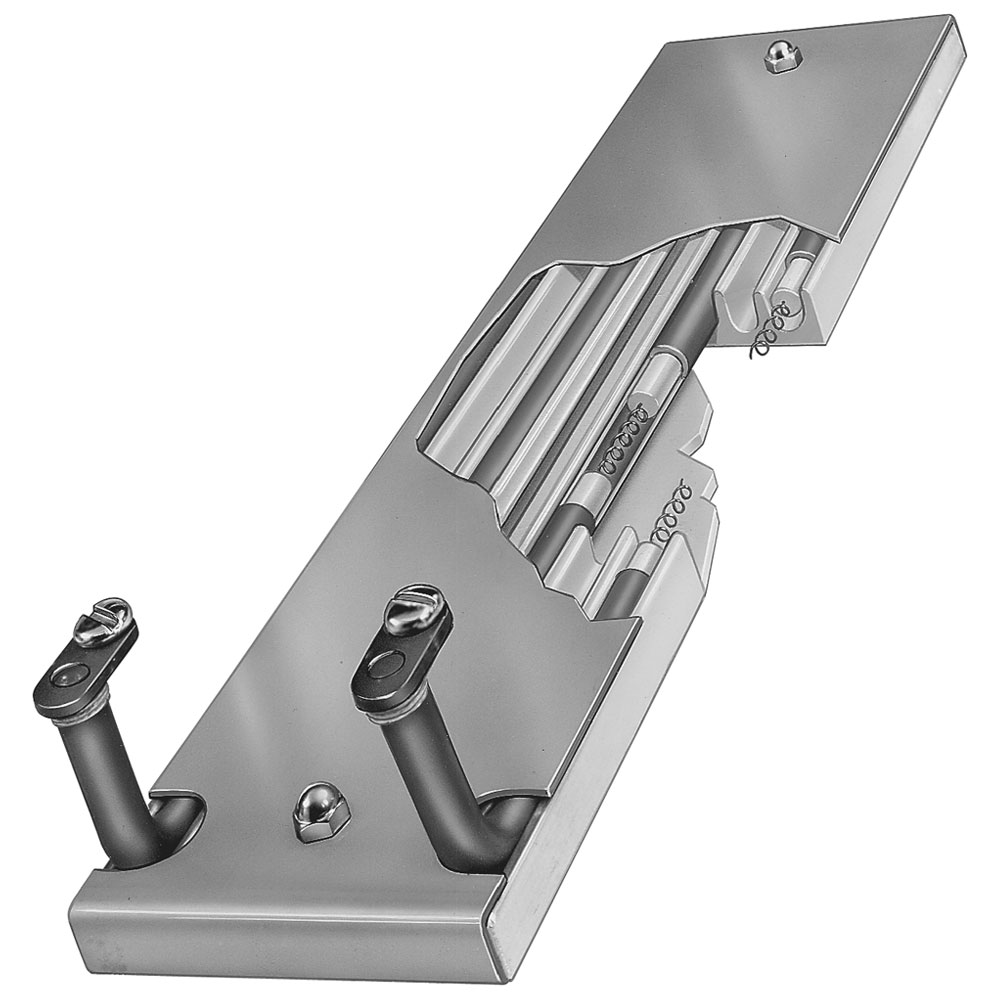

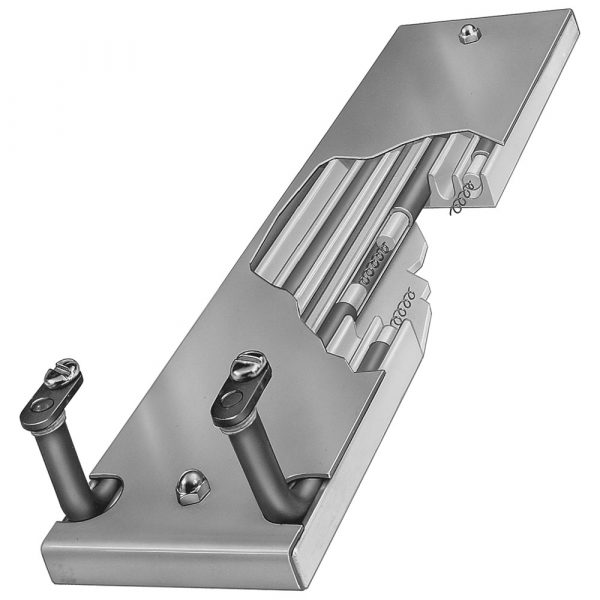

Used on flat smooth surfaces, features a contamination-proof design with excellent heat transfer. Typical application include hot plates thermoforming, sealing bars, platens, and extrusion dies.

Max Temperature: 343°C (650°F)
Max Voltage: 277VAC
Max Wattage: 20W/in²
Max Amperage: 25A
Widths: 1.5”, 2.5”, 3”, 4”
Thickness: 0.5”
Terminations: Screw terminal, Terminal lug, Wire braided leads, Armor cable leads, General purpose terminal box, Erge European connector plug
