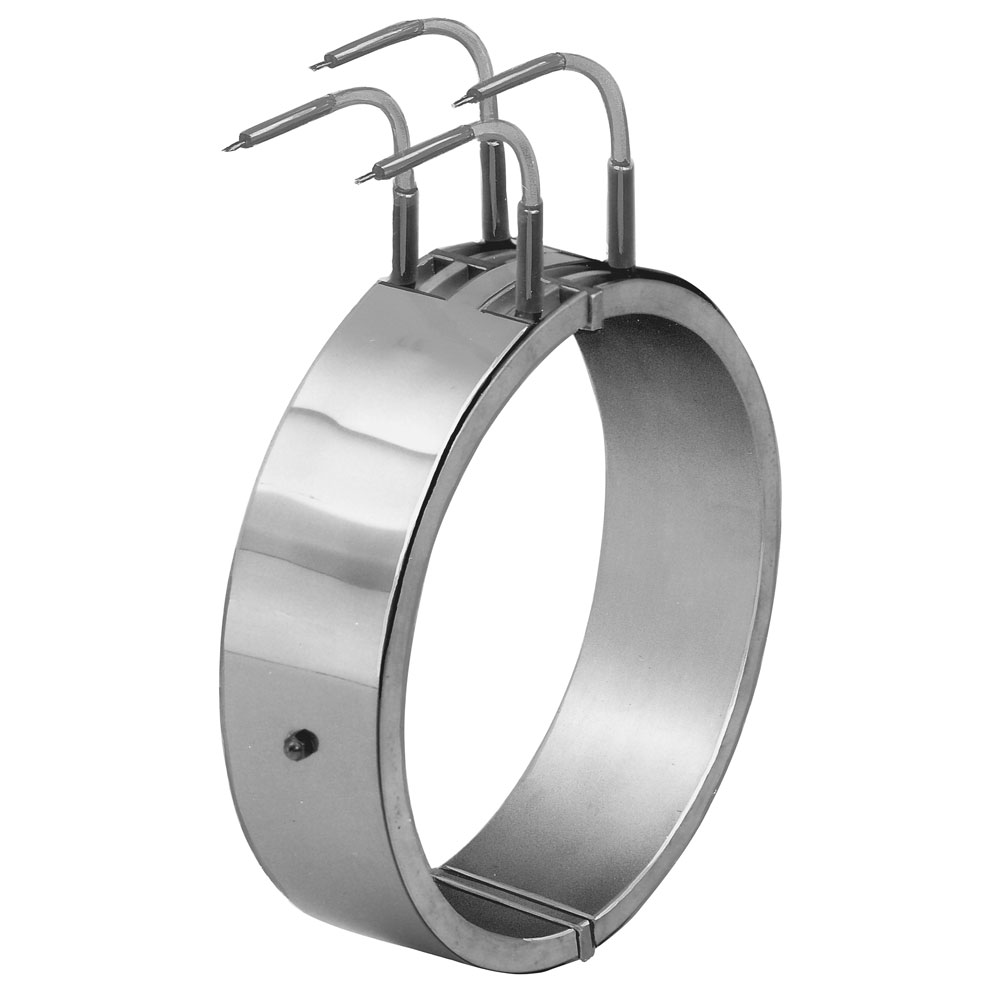

Maxi Band Heaters

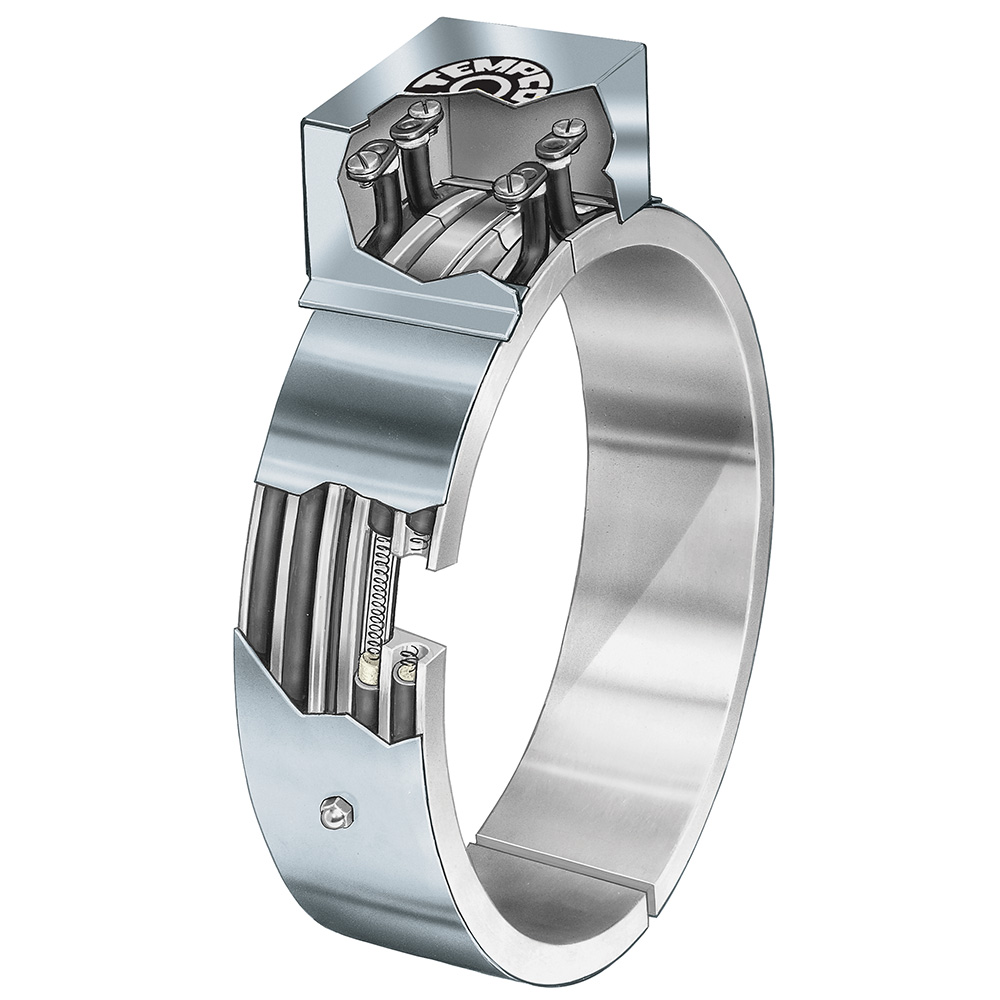

Used to heat smooth cylindrical uniform surfaces. Contamination-proof design with optional cooling tubes provides excellent heat transfer and longer shelf life.

Max Temperature: 350°C (650°F)
Max Voltage: 277VAC per termination
Nominal Wattage: 35W/in²
Max Wattage: dependent on size and number of elements used
Max Amperage: 30A per circuit
Widths: ¾”, 1-½”, 2-½”, 3”, 4”
Maximum Inner Diameter: 12″ with standard 2 segments, over 36″ with 8 segments

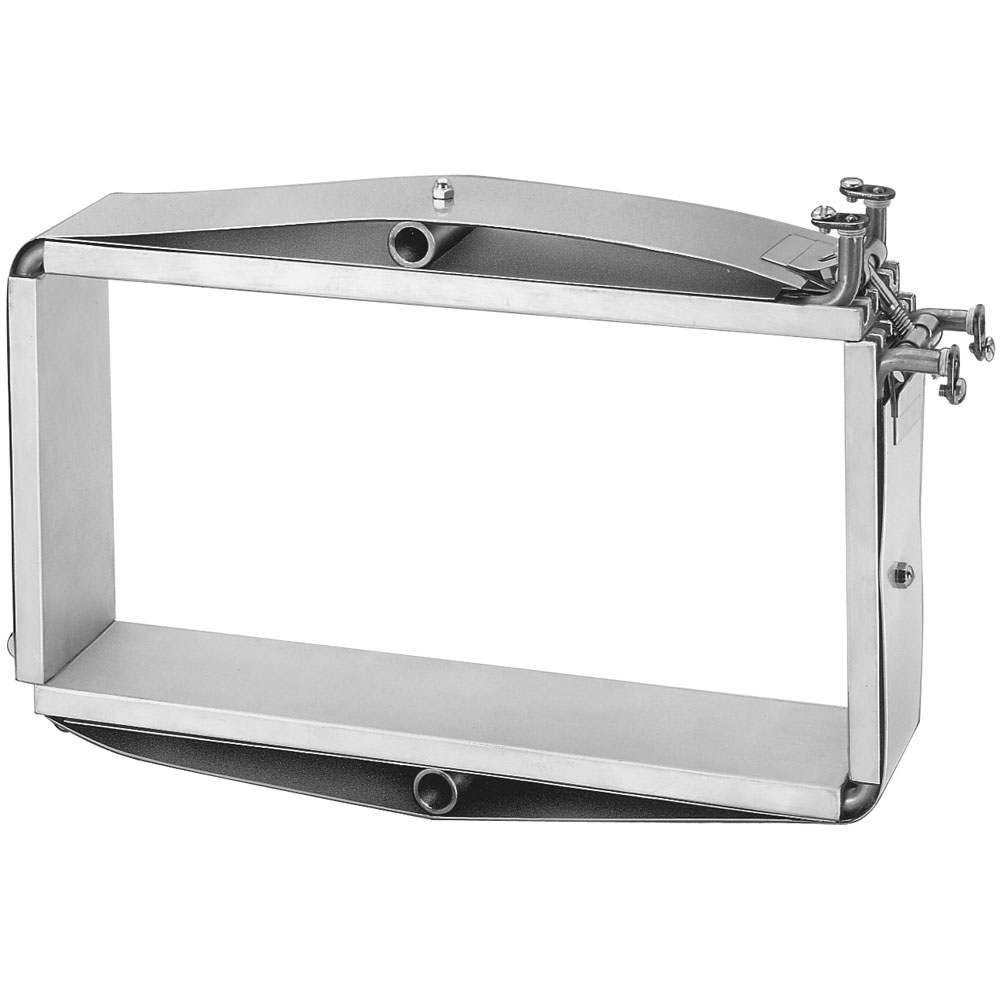

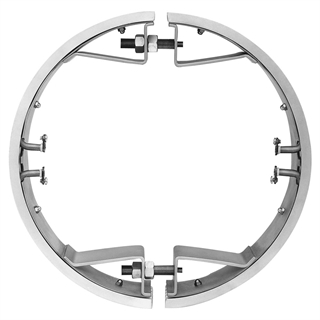

Construction: Multi-Segmented, Reverse, Partial Coverage, Rectangular,
Terminations: Terminal lugs, Wire braided lead wire, Teflon sleeved lead wire, Armor cable lead wire, General purpose terminal box, Explosion resistant terminal box, Erge European plug connector,
Closures: Barrel nuts, Spring loaded barrel nuts
Options: Heat Only, Cool only, Heat and cool, insulated shroud, Ground wire, Ground screw, Dual voltage
