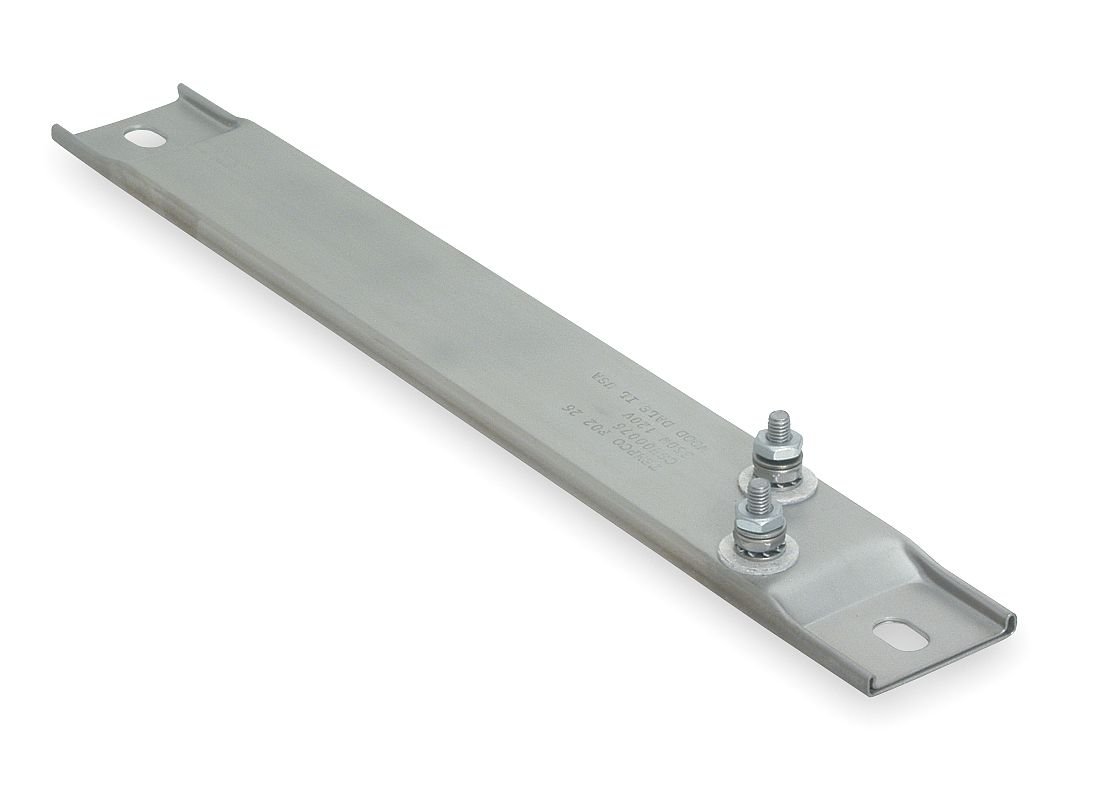

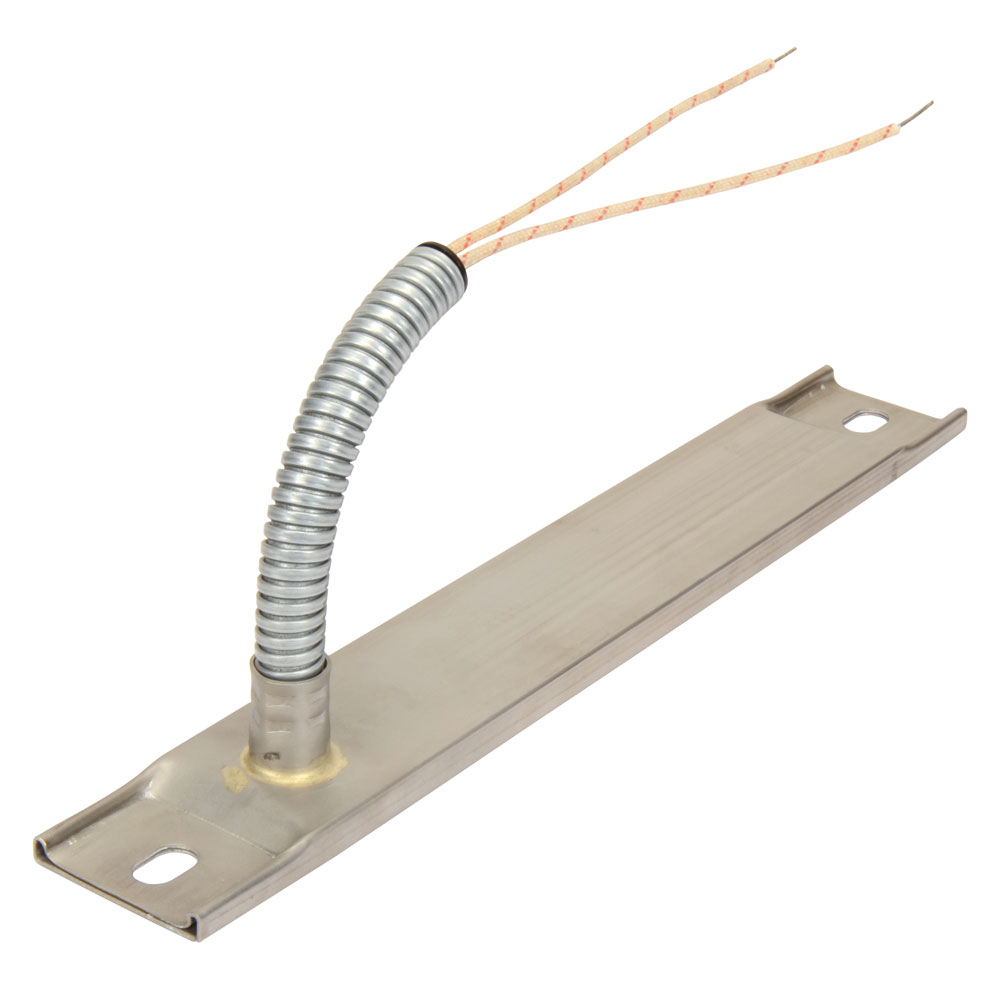

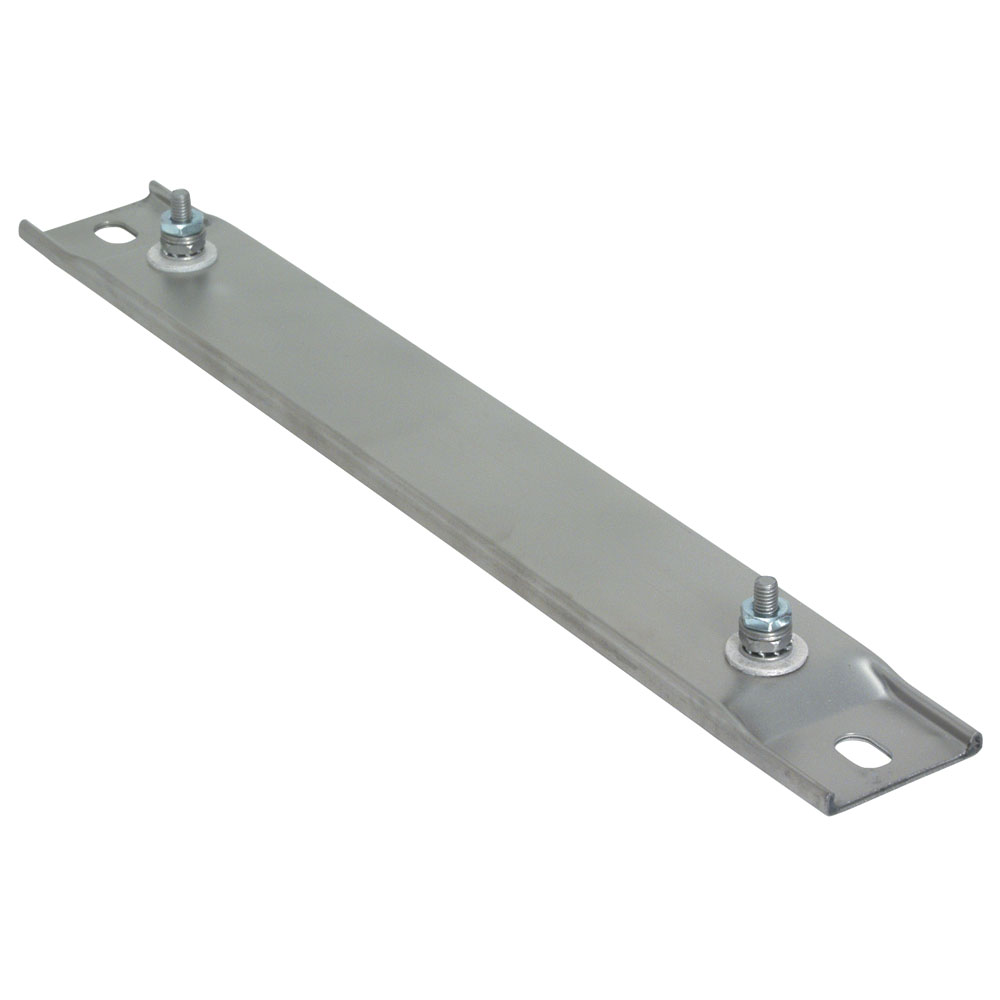

Channel Strip Heaters

Used on flat smooth surfaces. Typical application include hot plates, platens, sealing bars, baking and welding preheating. Channel strip heaters are also available with fins for air heating.

Max Temperature: 650°C (1200°F)
Max Voltage: 480VAC (depending on design)
Max Wattage: 45W/in²
Nominal Wattage: 20W/in²
Max Amperage: 10A lead termination, 20A screw termination
Widths: ⅝” , 1”, 1-1/2”
Terminations: Screw terminals, Wire braided leads, Amor cable leads, Plain fiberglass lead wire, General purpose terminal box, Erge European connector plug
Options: Finned, Mounting tabs, Ground wire, Three phase, Dual voltage
