Ceramic E-mitters

Emitters are normally mounted above facing downward. Typical applications include thermoforming, vacuum forming, curing, moisture prevention, and heating laboratory specimens and animals.

Surface Temperature: 293-772°C (560-1422°F)
Max Wattage: 35-43W/in²
Wave length: 2.5-6µm
Colour: Yellow to Orange, Rose to Grey, Straight White, Straight Black

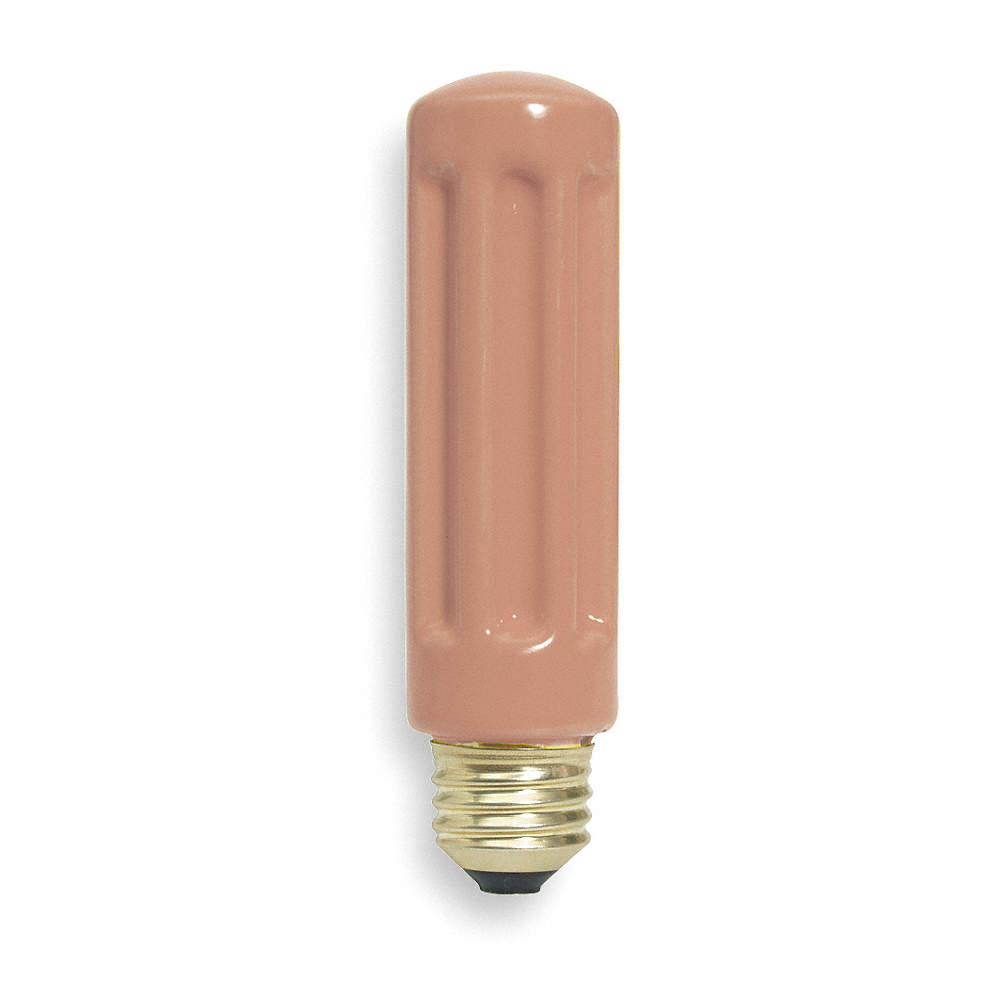

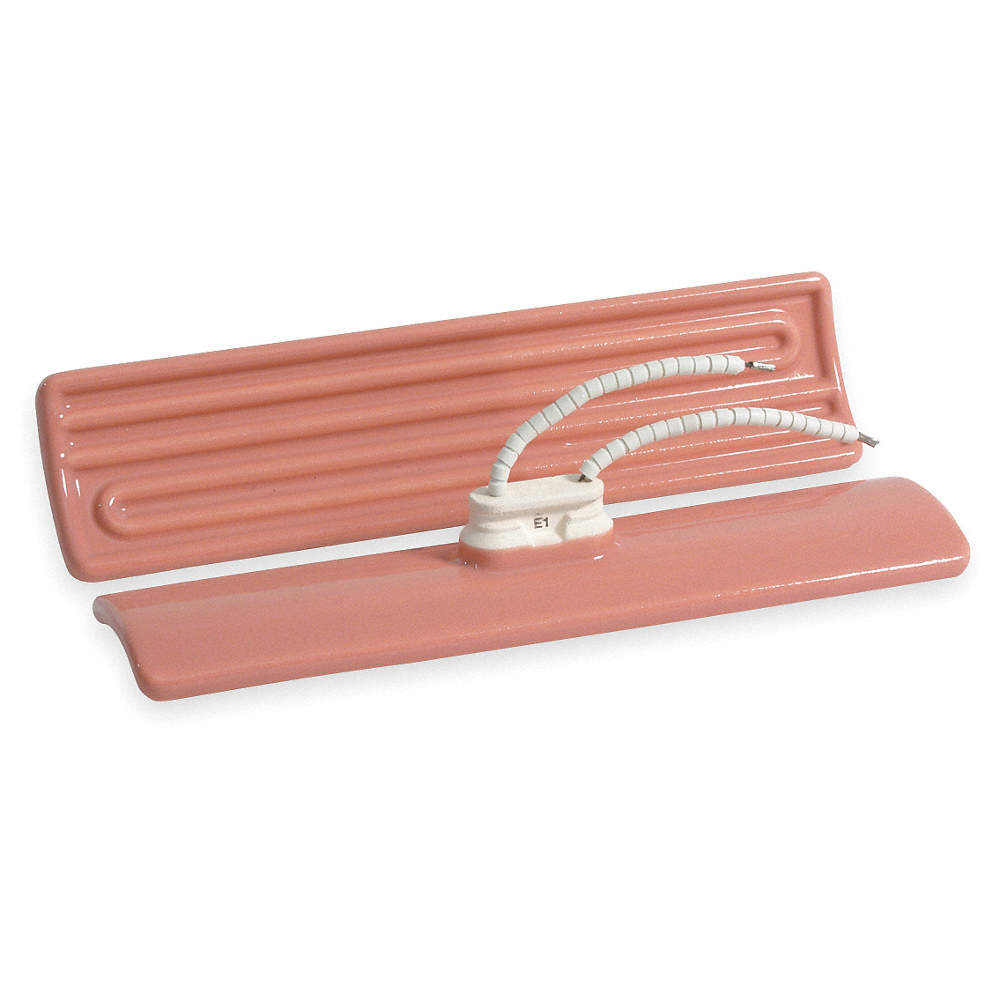

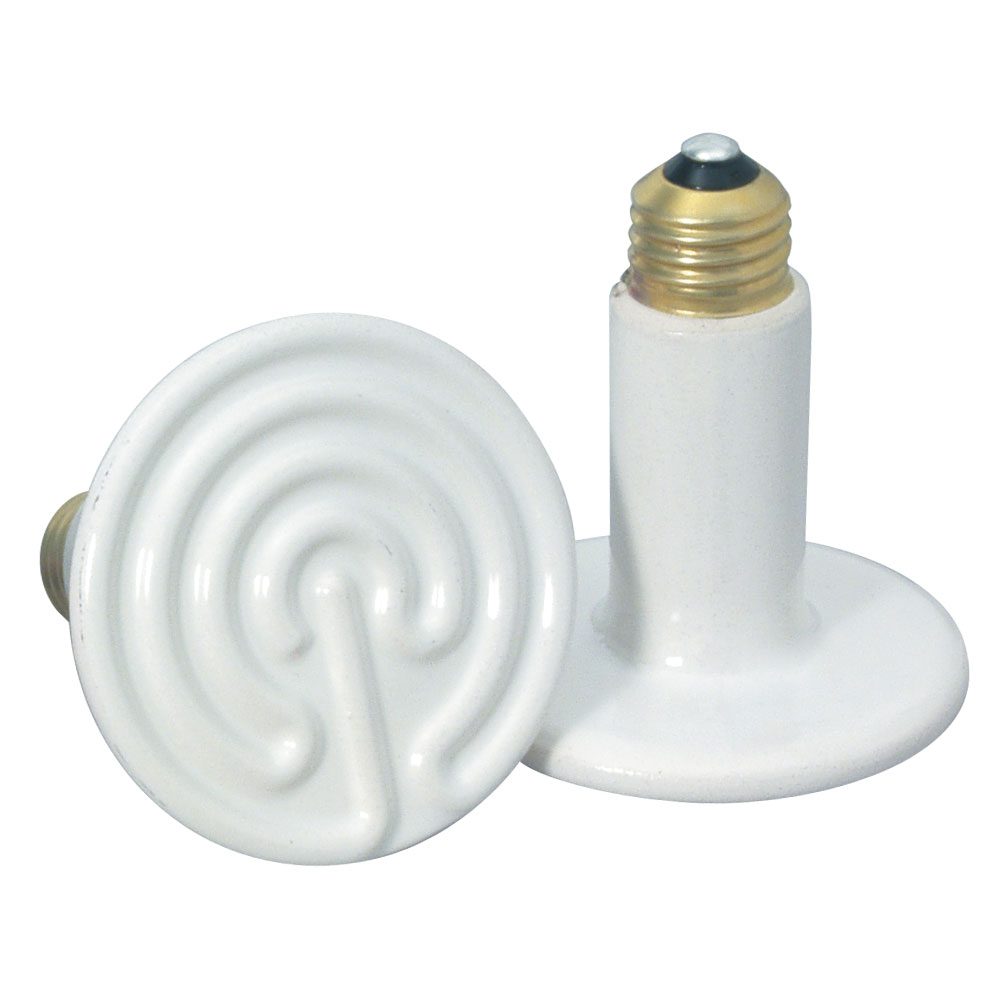

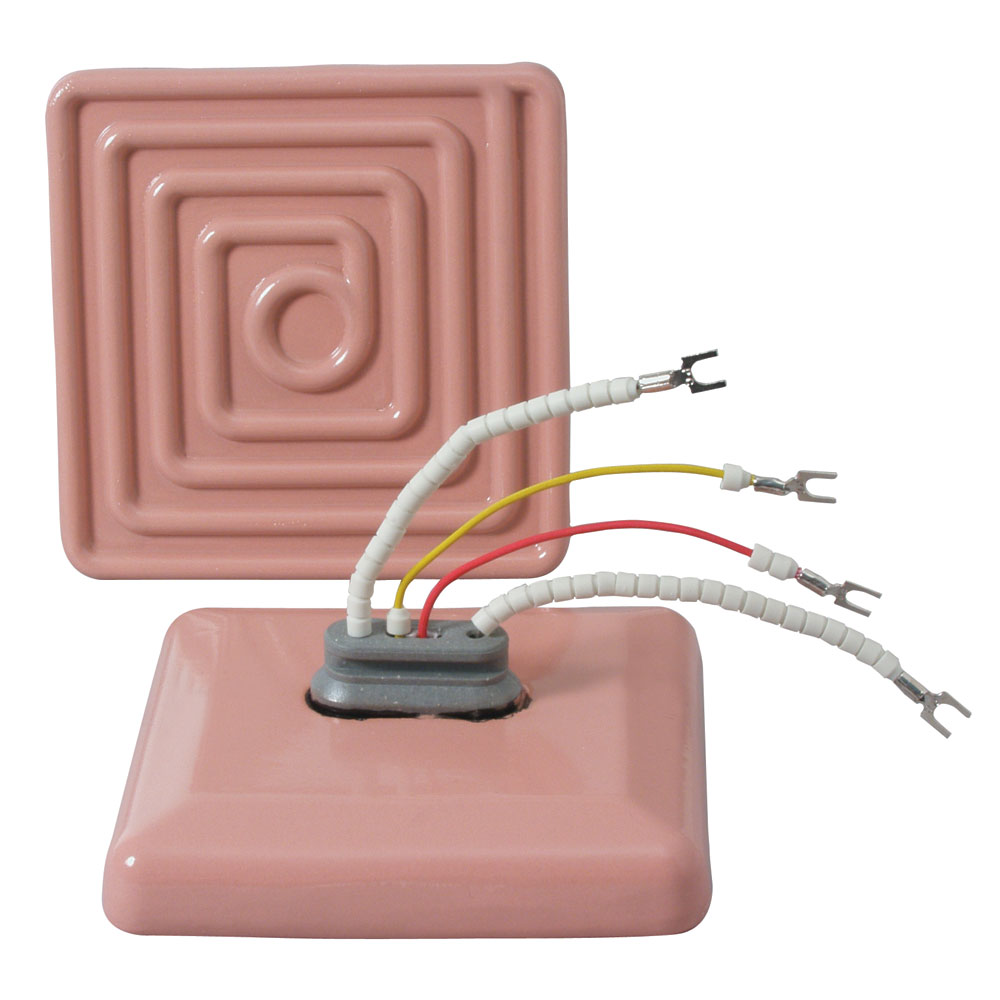

Types: Flat surface, Curved Surface, Bulb, Tube
Lengths: 9.65″ 6.42″ 4.80″ 2.36″
Termination: Ceramic bead insulated leads
Mounting: One-piece mounting clip, Two-piece mounting clip, Single element mounting bracket, Screw in base (bulbs & tubes)
Options: Thermocouple, Reflectors, Dual Voltage, Terminal Lugs
